Part Image

DRC10-40P-A004 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Positions 40 | PCB Mount Orientation Vertical | Number of Rows 4 | Number of Sections 2 | Number of Signal Positions 40 | Contact Features: Contact Current Rating (Max) 13 AMP | Mating Pin Diameter 1.59 MM | Mating Pin Diameter .063 INCH | Contact Size Size 16 | Contact Type Pin | Contact Mating Area Plating Material Tin | Dimensions: Profile Height from PCB 21.72 MM | Connector Length .855 INCH | Connector Length 21.72 MM | Conn

Download DRC10-40P-A004 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

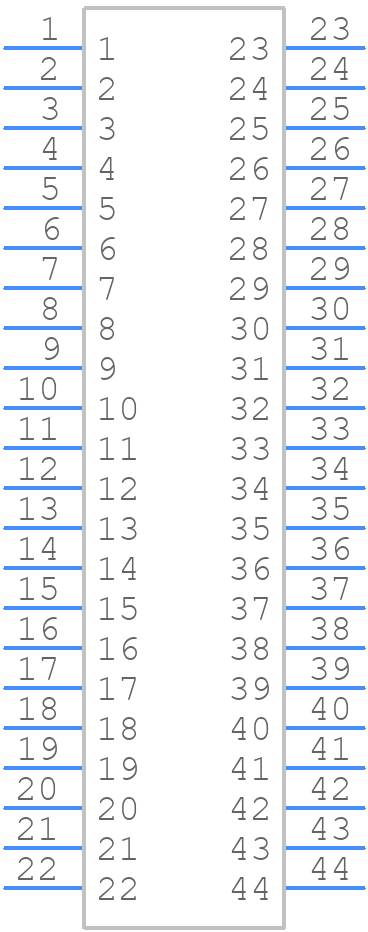

DRC10-40P-A004 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

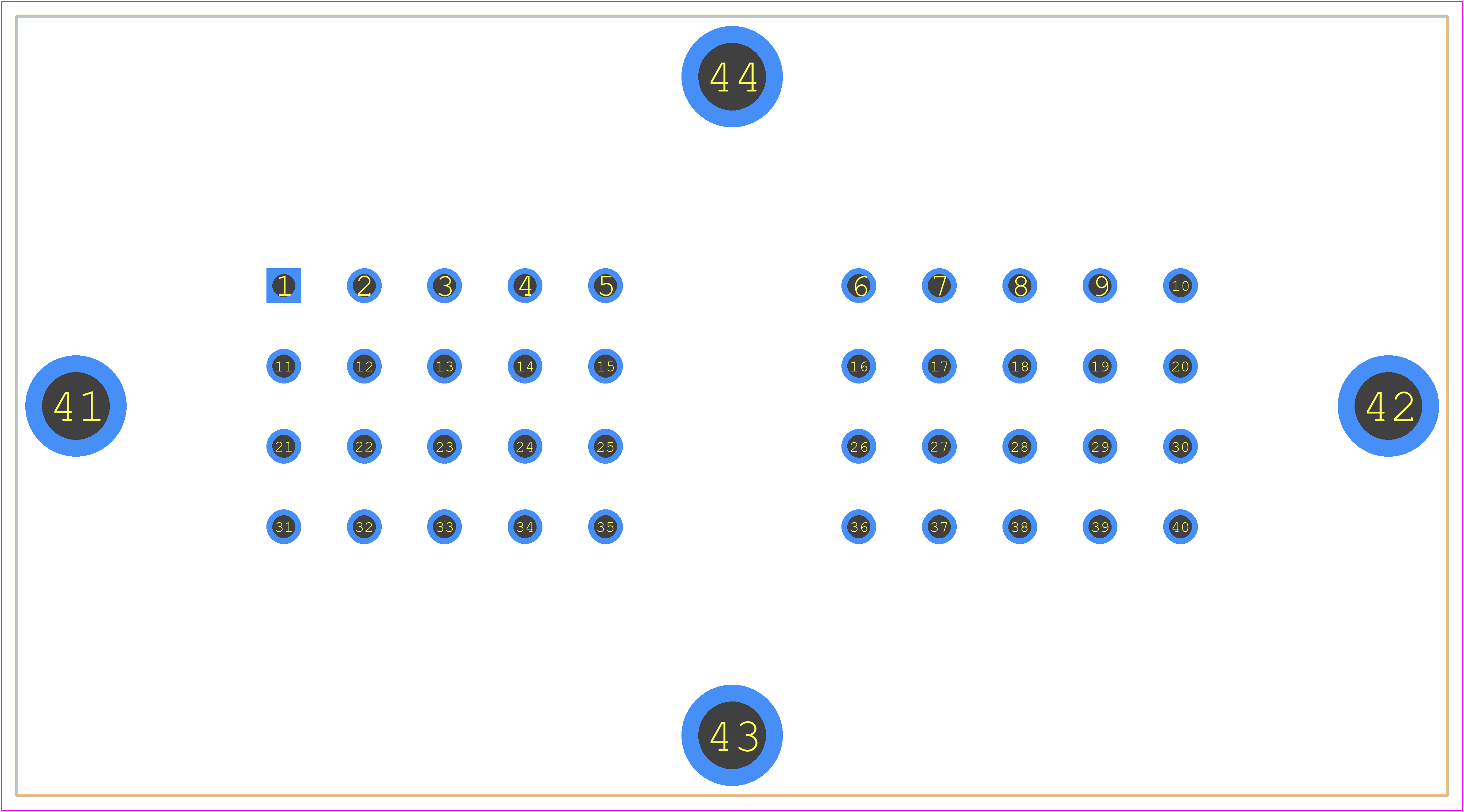

DRC10-40P-A004 - TE Connectivity PCB footprint - Other - Other - DRC10-40P-A004-1
click to zoom
3D Models
DRC10-40P-A004 - TE Connectivity - 3D model - Other - DRC10-40P-A004-1
click to zoom

DRC10-40P-A004 Details

  • Manufacturer Part Number:

    DRC10-40P-A004

  • Brand Name:

    DEUTSCH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    3.851 inch

  • Body Depth:

    0.895 inch

  • Body Length:

    0.855 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    13A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    13 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    5.45 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

DRC10-40P-A004 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the DRC10-40P-A004 is designed to withstand vibrations and can be used in high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • The DRC10-40P-A004 has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1m for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The recommended wire gauge is 24-20 AWG.
  • To ensure proper mating, make sure the connector is properly aligned, the screws are securely tightened, and the connector is fully seated. Also, ensure the connector is clean and free of debris before mating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRC10-40P-A004 Overview

Use the download button to access the DRC10-40P-A004 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRC10, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
