DRC13-70PD-B027 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

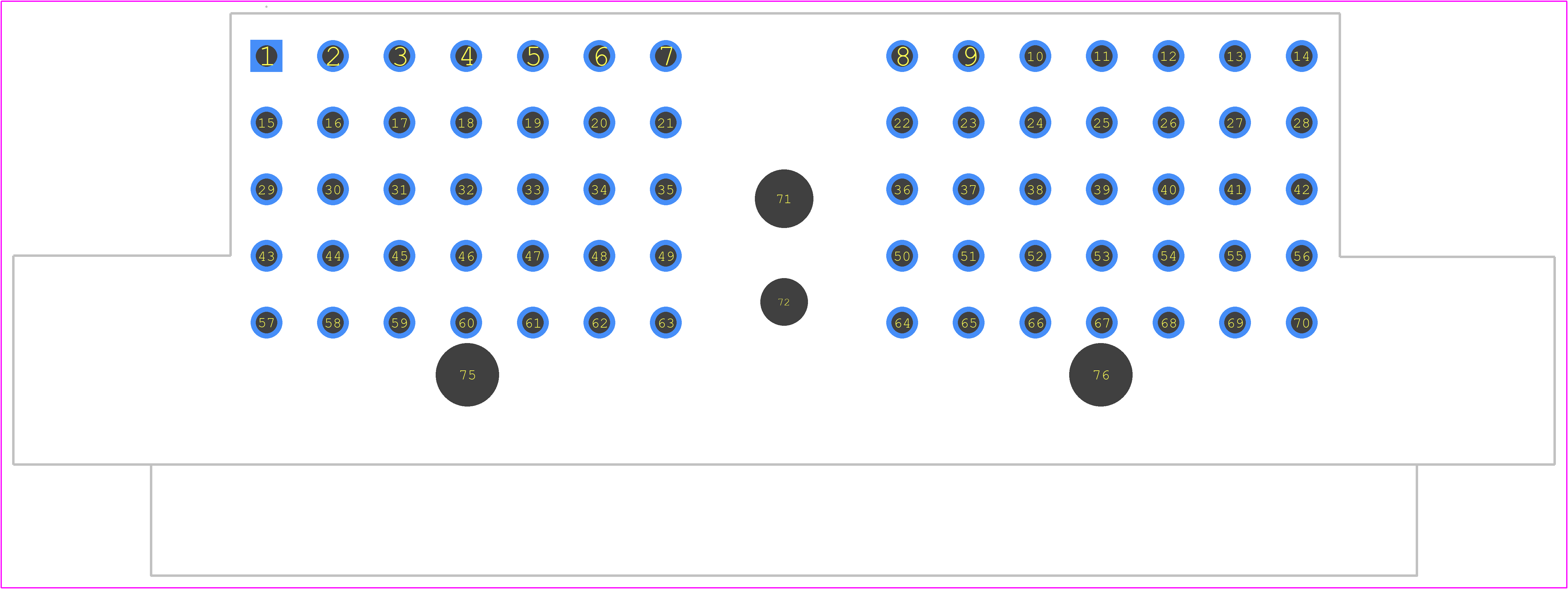

DRC13-70PD-B027 - TE Connectivity PCB footprint - Other - Other - DRC13-70PD-B027-5

click to zoom

3D Models

DRC13-70PD-B027 - TE Connectivity - 3D model - Other - DRC13-70PD-B027-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DRC13-70PD-B027
Part Number DRC13-70PD-B027
Manufacturer TE Connectivity
Pin Count 70
Part Category Connector
Package Category Other
Footprint Name Other - DRC13-70PD-B027-5
Released Date Apr 4, 2025
Last Modified Date Apr 4, 2025 11:10 AM UTC
Pinout / Pin List Click Here (Member Only)

DRC13-70PD-B027 Details

Manufacturer Part Number:
DRC13-70PD-B027
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
7.74
Body Breadth:
5 inch
Body Depth:
1.504 inch
Body Length:
1.822 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYAMIDE46
MIL Conformance:
NO
Mains Connector Rating:
13A
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
5
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Current (Signal):
13 A
Rated Voltage:
250 V
Shell Material:
BRASS
Terminal Pitch:
5.45 mm
Termination Type:
SOLDER
Total Number of Contacts:
70

DRC13-70PD-B027 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals of DRC13-70PD-B027 is 0.5-0.8 Nm (5-8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the DRC13-70PD-B027 relay is designed to withstand vibrations up to 10-2000 Hz, 10G acceleration. However, it's crucial to ensure proper mounting and secure the relay to prevent damage or malfunction.
The DRC13-70PD-B027 relay has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to operate the relay within this range to ensure reliable performance and prevent damage.
The DRC13-70PD-B027 relay is not designed for use in hazardous locations, such as explosive atmospheres. It's essential to check the relay's certifications and approvals before using it in such environments.
The expected lifespan of the DRC13-70PD-B027 relay is 100,000 to 200,000 cycles, depending on the operating conditions and load. Proper maintenance, such as cleaning and lubricating the contacts, can help extend the relay's lifespan.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

DRC13-70PD-B027 Overview

Use the download button to access the DRC13-70PD-B027 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DRC13, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
