DRC20-60P06 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code 06 | Configuration Features: Number of Sections 2 | PCB Mount Orientation Vertical | Number of Rows 6 | Number of Positions 60 | Number of Signal Positions 60 | Contact Features: Contact Mating Area Plating Material Gold | Contact Type Pin | Contact Current Rating (Max) 7.5 AMP | Mating Pin Diameter 1.02 MM | Mating Pin Diameter .04 INCH | Dimensions: Connector Length 2.161 INCH | Connector Width 78.59 MM | Profile Height from PCB 1.115 IN

Download DRC20-60P06 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DRC20-60P06 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

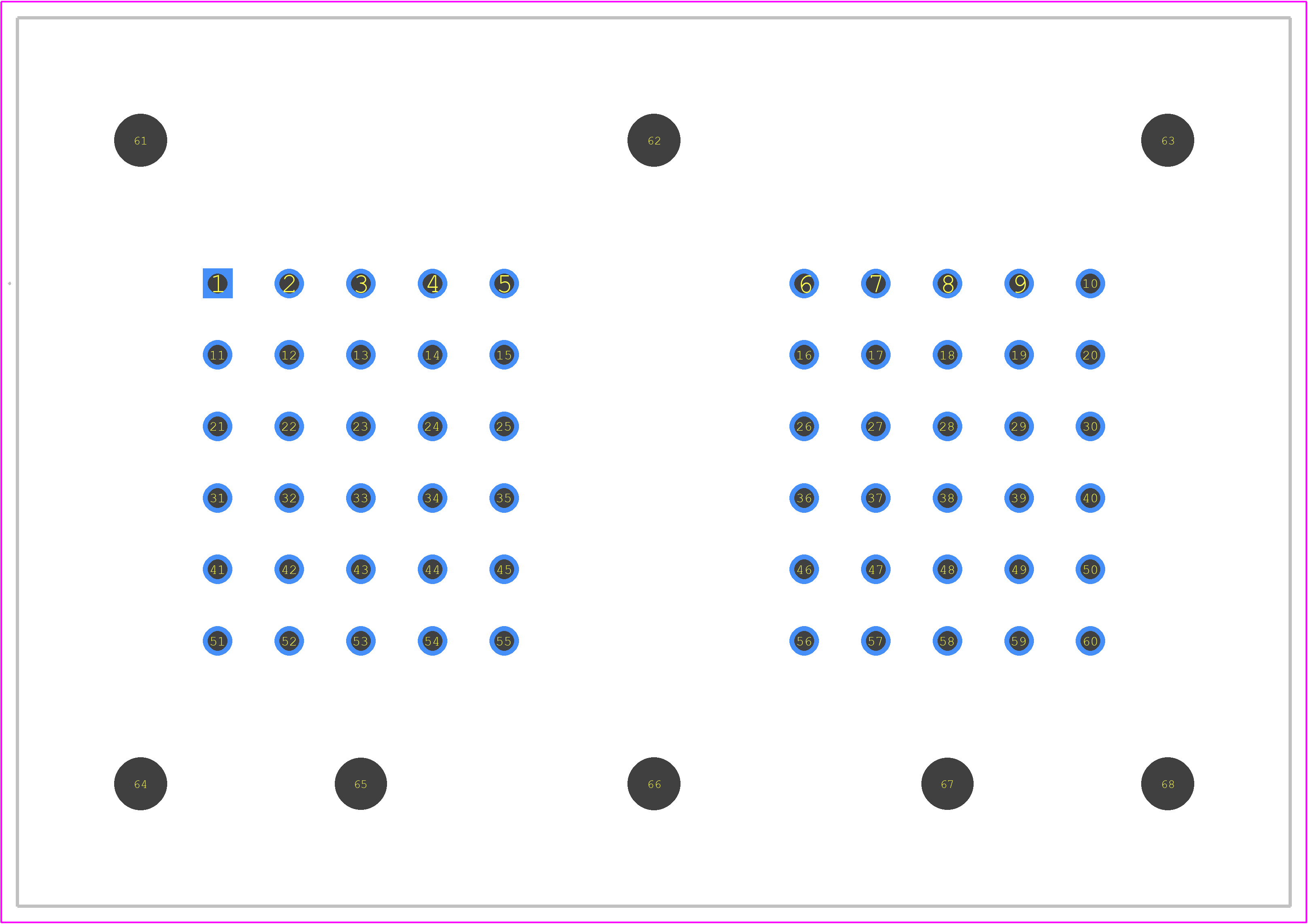

DRC20-60P06 - TE Connectivity PCB footprint - Other - Other - DRC20-60P06-3
click to zoom
3D Models
DRC20-60P06 - TE Connectivity - 3D model - Other - DRC20-60P06-3
click to zoom

DRC20-60P06 Details

  • Manufacturer Part Number:

    DRC20-60P06

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Body Breadth:

    3.094 inch

  • Body Length:

    2.161 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    7.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    7.5 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    4.42 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

DRC20-60P06 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of DRC20-60P06 is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the DRC20-60P06 relay is designed to withstand vibrations up to 10 G (IEC 60068-2-6) and can be used in high-vibration environments, but it's recommended to consult with TE Connectivity or a qualified engineer for specific application guidance.
  • The minimum recommended mounting hole size for the DRC20-60P06 relay is 3.2 mm (0.126 in) to ensure secure mounting and to prevent damage to the relay or the PCB.
  • The DRC20-60P06 relay has a rating of IEC 60068-2-3 for humidity and can operate in environments with up to 95% relative humidity. However, it's not recommended for use in wet or submerged environments without proper sealing or protection.
  • The recommended wire size for the DRC20-60P06 relay terminals is 0.5 mm² to 1.5 mm² (AWG 20 to AWG 16) to ensure reliable connections and to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRC20-60P06 Overview

Use the download button to access the DRC20-60P06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRC20, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
