DRC23-40PC-N012 - TE Connectivity

Description: Body Features: Connector & Keying Code C | Primary Product Color Black | Configuration Features: Number of Signal Positions 40 | Number of Sections 2 | Number of Rows 4 | Number of Positions 40 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Gold | Contact Current Rating (Max) 7.5 AMP | Mating Pin Diameter 1.02 MM | Mating Pin Diameter .04 INCH | Contact Type Pin | Contact Size Size 20 | Dimensions: Profile Height from PCB 38.1 MM | Connector Width 96.52 MM | Con

Download DRC23-40PC-N012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DRC23-40PC-N012 - TE Connectivity - PCB symbol
click to zoom

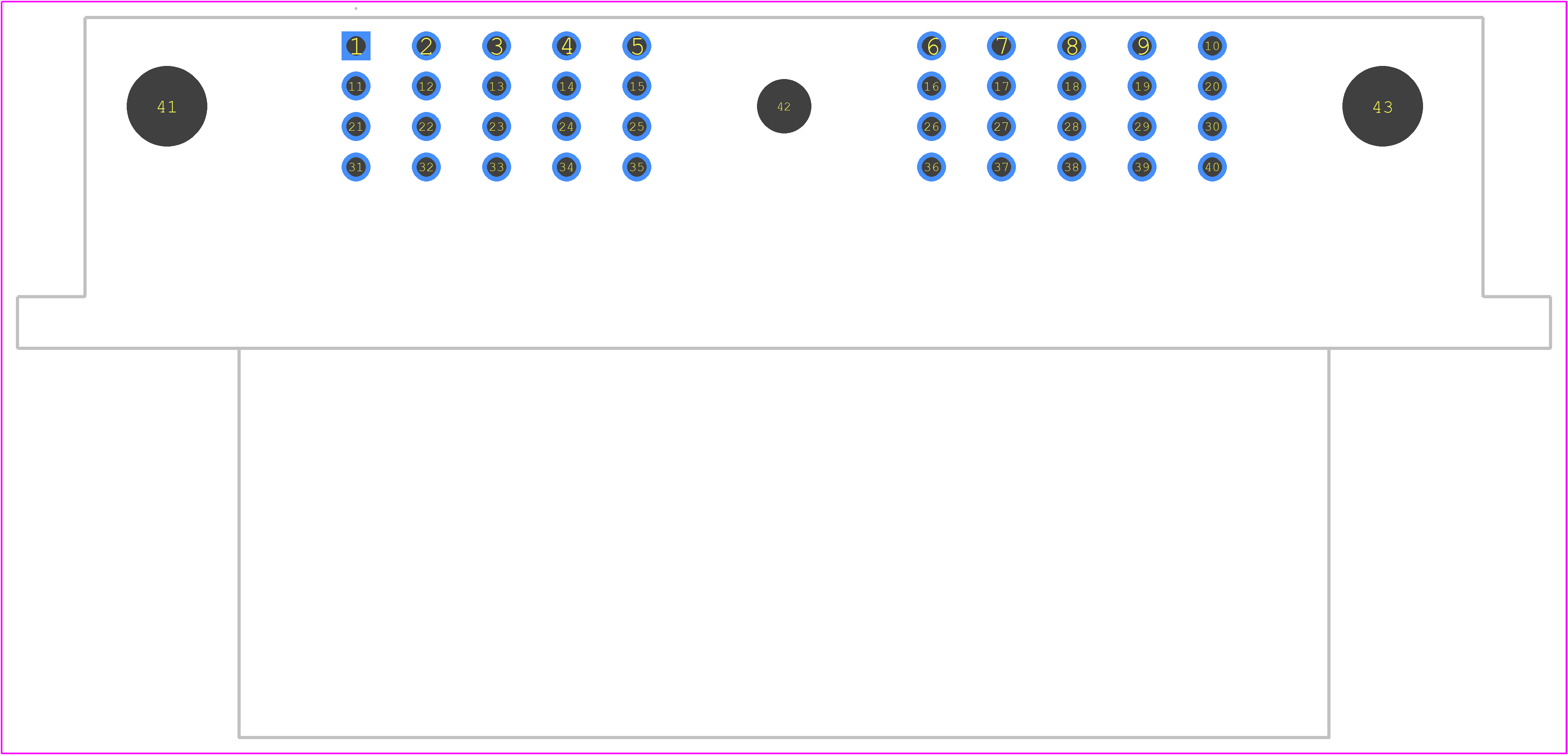

PCB Footprints
DRC23-40PC-N012 - TE Connectivity PCB footprint - Other - Other - DRC23-40PC-N012-1
click to zoom
3D Models
DRC23-40PC-N012 - TE Connectivity - 3D model - Other - DRC23-40PC-N012-1
click to zoom

DRC23-40PC-N012 Details

  • Manufacturer Part Number:

    DRC23-40PC-N012

  • Brand Name:

    DEUTSCH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    3.8 inch

  • Body Length:

    1.785 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    7.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    7.5 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    4.42 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

DRC23-40PC-N012 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of DRC23-40PC-N012 is 0.5-0.8 Nm (5-8 in-lbs).
  • Yes, the DRC23-40PC-N012 relay is designed to withstand vibrations up to 10-2000 Hz, 10G acceleration, and can be used in high-vibration environments with proper mounting and installation.
  • The operating temperature range for the DRC23-40PC-N012 relay is -40°C to 125°C (-40°F to 257°F).
  • The DRC23-40PC-N012 relay is not designed for use in hazardous locations and does not have any specific certifications for explosive atmospheres. It is intended for general-purpose applications only.
  • The DRC23-40PC-N012 relay is designed to operate in a relative humidity range of 5-95% RH, but it is not designed for immersion in water or exposure to high-pressure washdowns. Proper sealing and protection may be required for use in humid or wet environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRC23-40PC-N012 Overview

Use the download button to access the DRC23-40PC-N012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRC23, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
