DS03-254-07BE - Same Sky

Description: 7 Position, Through Hole, 2.54 mm, Flat Slide Actuator, Convex Bottom, Long Pin, DIP Switch

Download DS03-254-07BE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

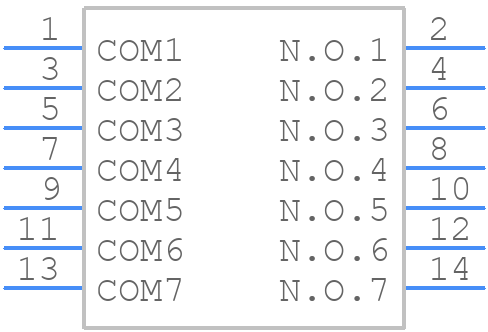

DS03-254-07BE - Same Sky - PCB symbol
click to zoom
PCB Footprints

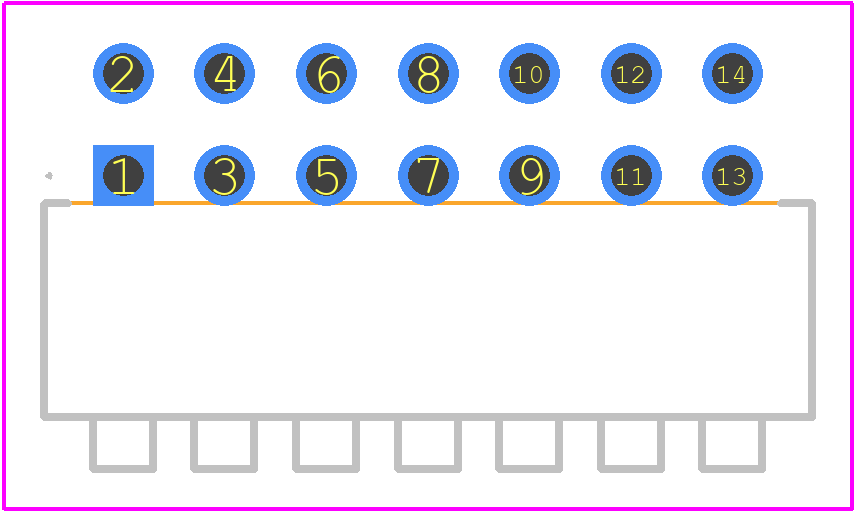

DS03-254-07BE - Same Sky PCB footprint - Other - Other - DS03-254-07BE-1
click to zoom
3D Models
DS03-254-07BE - Same Sky - 3D model - Other - DS03-254-07BE-1
click to zoom

DS03-254-07BE Details

  • Manufacturer Part Number:

    DS03-254-07BE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.6

  • Actuator Color:

    WHITE

  • Actuator Length:

    0.051 inch

  • Actuator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Actuator Type:

    RAISED TYPE

  • Body Breadth:

    8.58 mm

  • Body Color:

    BLACK

  • Body Height:

    9.9 mm

  • Body Length or Diameter:

    19.2 mm

  • Center Contact Material:

    COPPER ALLOY

  • Center Contact Plating:

    GOLD

  • Contact Current(DC)-Max:

    0.025 A

  • Contact (DC) Max Rating R Load:

    0.025A@24VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    24 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    2000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    GOLD

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Switch Sections:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    14

  • Solderability:

    WAVE/HAND

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Length:

    0.106 inch

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

DS03-254-07BE Frequently Asked Questions (FAQs)

  • CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
  • Follow the recommended soldering profile and assembly guidelines provided by CUI Devices, and ensure that the PCB is designed with adequate thermal relief and clearance to prevent overheating during the soldering process.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with CUI Devices' technical support for specific guidance on operating temperature ranges for your application.
  • While the DS03-254-07BE is designed to be rugged, it's crucial to evaluate the device's performance in your specific application environment. Consult with CUI Devices' technical support to determine the device's suitability for high-vibration or high-shock environments and to discuss potential customization or additional testing requirements.
  • CUI Devices recommends following standard ESD handling and protection procedures, such as using anti-static wrist straps, mats, and packaging materials, to prevent damage to the device during handling and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS03-254-07BE Overview

Use the download button to access the DS03-254-07BE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS03-, or try a keyword search, such as DIP Switches

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
