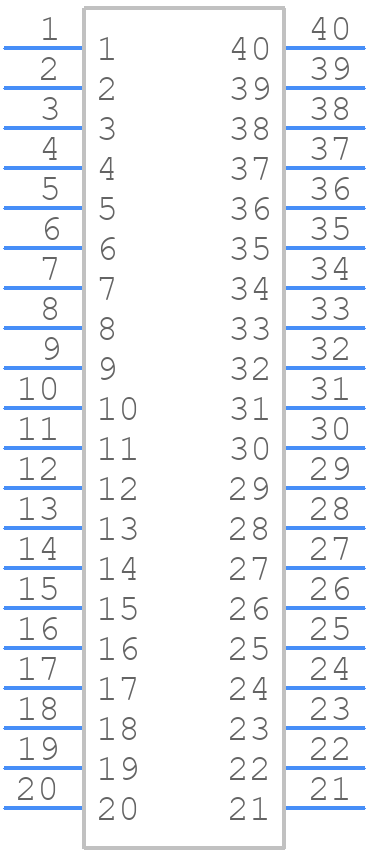

Symbol

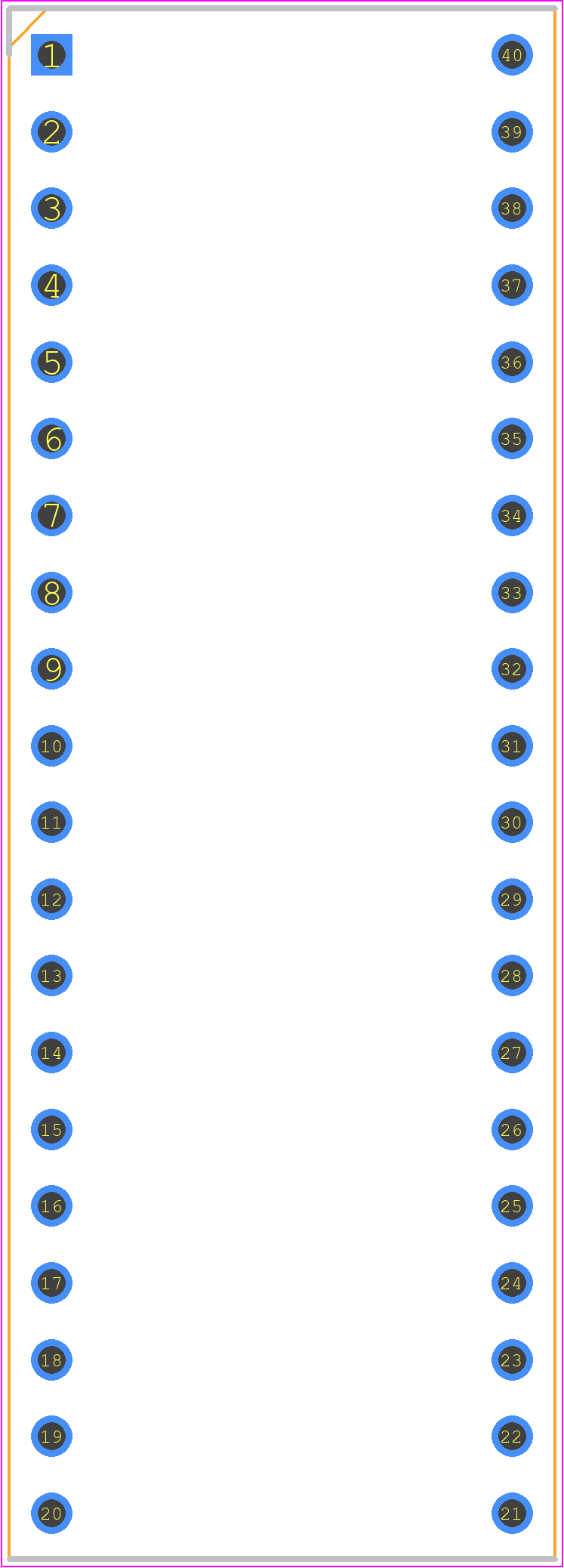

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DS1009-40AT1WS
- Part Number DS1009-40AT1WS
- Manufacturer Connfly
- Pin Count 40
- Part Category Connector
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - DS1009-40AT1WS
- Released Date Aug 16, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DS1009-40AT1WS Details
-
Manufacturer Part Number:
DS1009-40AT1WS
-
Manufacturer:
Ningbo connfly electronic CO LTD
Trust Checks
Community Provided
System Verified
Community Approved
DS1009-40AT1WS Overview
Use the download button to access the DS1009-40AT1WS schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DS100,
or try a keyword search, such as Sockets and Chip Carriers
