DS1020-50 - Rochester Electronics

DS1020-50 Details

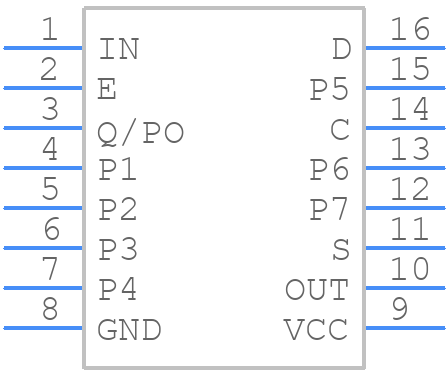

• Manufacturer Part Number:

  DS1020-50

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Package Description:

  DIP,

• Pin Count:

  16

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Rochester Electronics LLC

• Additional Feature:

  PROGRAMMABLE USING 3-WIRE SERIAL PORT OR 8-BIT PARALLEL PORT

• Family:

  CMOS

• Input Frequency-Max (fmax):

  3.63636 MHz

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e0

• Length:

  19.175 mm

• Logic IC Type:

  SILICON DELAY LINE

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Taps/Steps:

  255

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  240

• Programmable Delay Line:

  YES

• Qualification Status:

  COMMERCIAL

• Seated Height-Max:

  4.572 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Total Delay-Nom (td):

  137.5 ns

• Width:

  7.62 mm
