DS1023S-100+ - Analog Devices

Description: DS1023S-100+, Delay Line Circuit 255 ns, 16-Pin SOIC

Download DS1023S-100+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

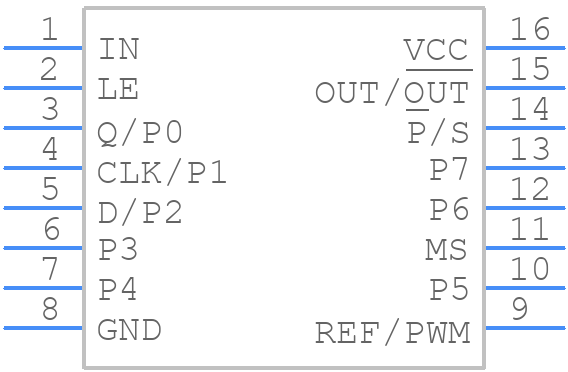

Symbol
DS1023S-100+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1023S-100+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - DS1210S 16-pin SOIC (300-mil)
click to zoom
3D Models
DS1023S-100+ - Analog Devices - 3D model - Small Outline Packages - DS1210S 16-pin SOIC (300-mil)
click to zoom

DS1023S-100+ Details

  • Manufacturer Part Number:

    DS1023S-100+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    0.300 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Family:

    CMOS/TTL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Logic IC Type:

    SILICON DELAY LINE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Taps/Steps:

    255

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    60 mA

  • Programmable Delay Line:

    YES

  • Prop. Delay@Nom-Sup:

    272 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Delay-Nom (td):

    268 ns

  • Width:

    7.5 mm

DS1023S-100+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS1023S-100+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. It's also recommended to use a low-ESR capacitor for the VCC pin and to keep the input traces as short as possible.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be mounted in a way that minimizes thermal coupling to the surrounding environment.
  • The maximum allowed voltage on the input pins of the DS1023S-100+ is 5.5V, which is the absolute maximum rating. However, for normal operation, the input voltage should be limited to VCC + 0.3V to prevent damage to the device.
  • Yes, the DS1023S-100+ can be used in a ratiometric configuration, where the output voltage is proportional to the ratio of the input voltage to the reference voltage. This configuration can provide improved accuracy and temperature stability.
  • When the input voltage is near the reference voltage, the output code of the DS1023S-100+ may be ambiguous. To handle this, it's recommended to use a hysteresis or a window comparator to detect when the input voltage is within a certain range of the reference voltage.
