DS1100LZ-50+ - Analog Devices

Description: DS1100LZ-50+, Delay Line, 5-Taps 50ns, 8-Pin SOIC

Download DS1100LZ-50+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

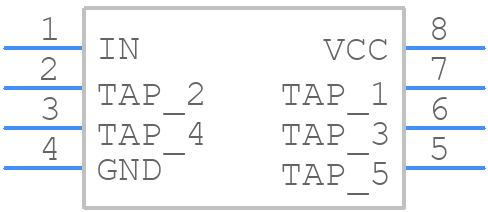

Symbol
DS1100LZ-50+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1100LZ-50+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+4
click to zoom
3D Models
DS1100LZ-50+ - Analog Devices - 3D model - Small Outline Packages - S8+4
click to zoom

DS1100LZ-50+ Details

  • Manufacturer Part Number:

    DS1100LZ-50+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-09-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Family:

    1100

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    SILICON DELAY LINE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Taps/Steps:

    5

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance-Nom (Z0):

    50 Ω

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    10 mA

  • Programmable Delay Line:

    NO

  • Prop. Delay@Nom-Sup:

    50 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Delay-Nom (td):

    50 ns

  • Width:

    3.9 mm

DS1100LZ-50+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS1100LZ-50+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The DS1100LZ-50+ requires a stable power supply with a minimum of 4.5V and a maximum of 5.5V. Decoupling capacitors of 0.1uF and 10uF should be placed close to the device, with the 0.1uF capacitor connected between the VCC pin and the GND pin, and the 10uF capacitor connected between the VCC pin and a solid ground plane.
  • The maximum clock frequency that can be used with the DS1100LZ-50+ is 50MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
  • The DS1100LZ-50+ can be configured using the SPI interface. The device has several registers that can be programmed to set the output voltage, output current, and other parameters. The specific configuration will depend on the application requirements and can be found in the device datasheet and application notes.
  • The DS1100LZ-50+ has a thermal pad that should be connected to a solid ground plane or a heat sink to dissipate heat. The device can operate at a junction temperature of up to 125°C, but the thermal management strategy should be designed to keep the junction temperature below 100°C for optimal performance and reliability.
