DS1100U-200+W - Analog Devices

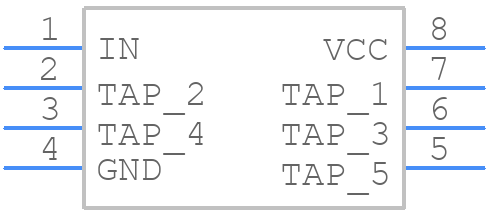

DS1100U-200+W Details

• Manufacturer Part Number:

  DS1100U-200+W

• Part Life Cycle Code:

  Obsolete

• Package Description:

  MICRO PACKAGE-8

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Family:

  1100

• JESD-30 Code:

  S-PDSO-G8

• Length:

  3 mm

• Logic IC Type:

  SILICON DELAY LINE

• Number of Functions:

  1

• Number of Taps/Steps:

  5

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP8,.19

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Power Supply Current-Max (ICC):

  50 mA

• Programmable Delay Line:

  NO

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Total Delay-Nom (td):

  200 ns

• Width:

  3 mm
