DS1220AD-120+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - DS1220AD-120+ - NVRAM, SRAM, 16 Kbit, 2K x 8bit, 120 ns, EDIP

Download DS1220AD-120+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

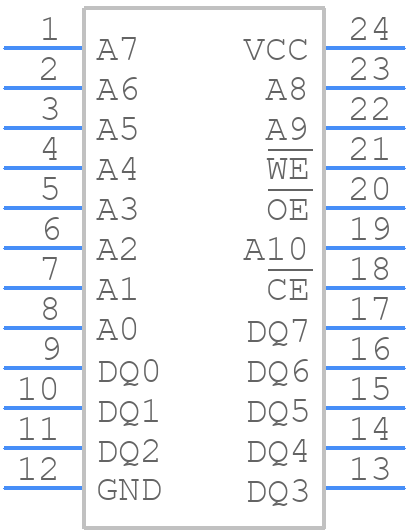

DS1220AD-120+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

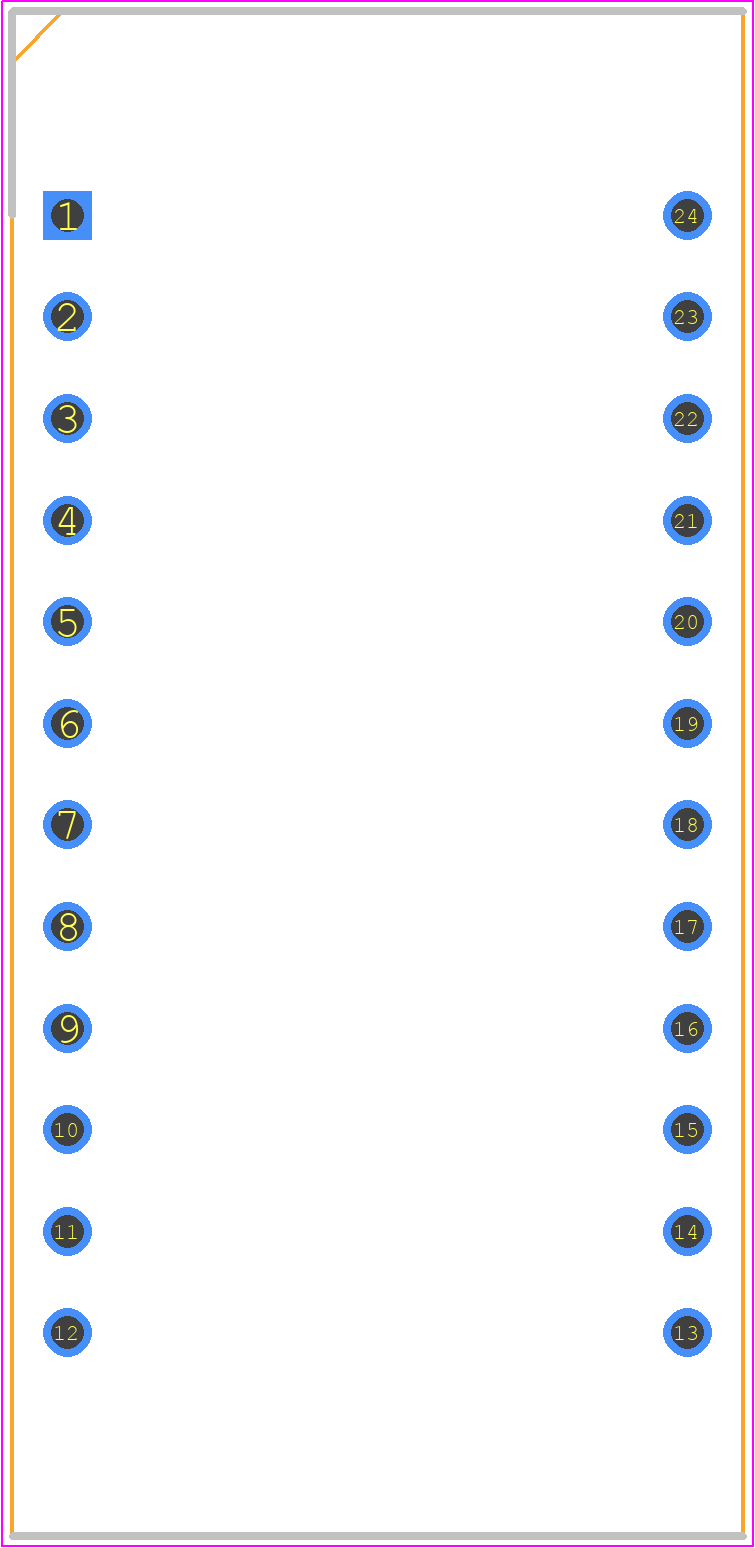

DS1220AD-120+ - Analog Devices PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DS1220AD-200IND+*
click to zoom

DS1220AD-120+ Details

  • Manufacturer Part Number:

    DS1220AD-120+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    N/A

  • Package Description:

    0.720 INCH, ROHS COMPLIANT, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2002-10-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Access Time-Max:

    120 ns

  • JESD-30 Code:

    R-XDMA-P24

  • JESD-609 Code:

    e3

  • Memory Density:

    16384 bit

  • Memory IC Type:

    NON-VOLATILE SRAM MODULE

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    2KX8

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Parallel/Serial:

    PARALLEL

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.01 A

  • Supply Current-Max:

    0.075 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

DS1220AD-120+ Frequently Asked Questions (FAQs)

  • It is recommended to place the DS1220AD-120+ close to the battery, use a solid ground plane, and keep the device away from high-frequency signals and noise sources. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, use a 10uF capacitor between VCC and GND, and a 1uF capacitor between VBAT and GND to filter out noise.
  • To ensure accurate temperature measurement, it is essential to follow proper thermal design practices. This includes ensuring good thermal contact between the device and the PCB, using a thermally conductive material for the PCB, and avoiding thermal gradients. Additionally, calibrate the device using the CAL pin and follow the recommended calibration procedure.
  • The maximum allowed voltage on the VBAT pin is 4.5V. Exceeding this voltage can cause permanent damage to the device. It is recommended to use a voltage regulator or a voltage limiter to ensure the voltage on the VBAT pin does not exceed 4.5V. Higher voltages can also affect the device's accuracy and reliability.
  • During power-up, ensure that the VCC pin is powered up before the VBAT pin. During power-down, ensure that the VBAT pin is powered down before the VCC pin. This prevents incorrect operation and potential damage to the device. Additionally, use a power-up reset circuit to ensure the device is properly reset during power-up.
  • The recommended method for communicating with the DS1220AD-120+ using the 1-Wire protocol is to use a dedicated 1-Wire master device or a microcontroller with a 1-Wire interface. Ensure that the 1-Wire bus is properly terminated, and use a pull-up resistor on the DQ pin to prevent bus contention.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1220AD-120+ Overview

Use the download button to access the DS1220AD-120+ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DS122, or try a keyword search, such as SRAMs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
