DS1220AD-200IND+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - DS1220AD-200IND+ - NVRAM, SRAM, 16 Kbit, 2K x 8bit, 200 ns, EDIP

Download DS1220AD-200IND+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

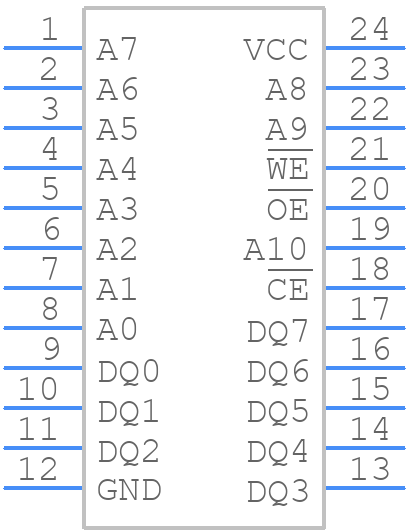

DS1220AD-200IND+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

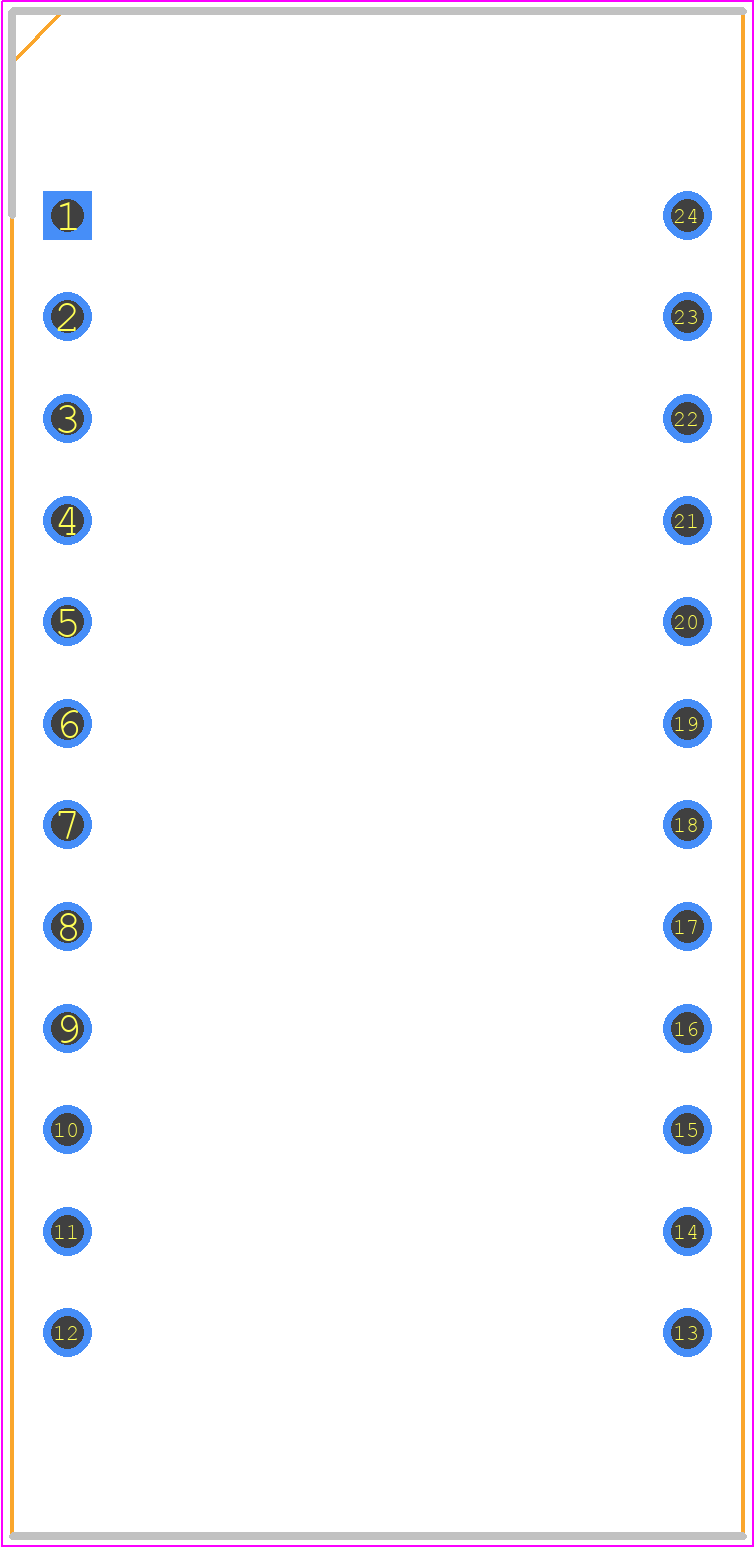

DS1220AD-200IND+ - Analog Devices PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DS1220AD-200IND+
click to zoom

DS1220AD-200IND+ Details

  • Manufacturer Part Number:

    DS1220AD-200IND+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    N/A

  • Package Description:

    0.720 INCH, ROHS COMPLIANT, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2002-10-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Access Time-Max:

    200 ns

  • JESD-30 Code:

    R-XDMA-P24

  • JESD-609 Code:

    e3

  • Memory Density:

    16384 bit

  • Memory IC Type:

    NON-VOLATILE SRAM MODULE

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2KX8

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.01 A

  • Supply Current-Max:

    0.085 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

DS1220AD-200IND+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS1220AD-200IND+ involves keeping the device away from high-frequency noise sources, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure accurate temperature measurement, it's essential to follow proper calibration procedures, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, consider using a thermocouple or other temperature sensor with a high accuracy rating.
  • The DS1220AD-200IND+ has an operating temperature range of -40°C to +85°C, but it's essential to note that the device's accuracy and reliability may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
  • While the DS1220AD-200IND+ is a robust device, it's still susceptible to vibration and shock. To ensure reliable operation in such environments, consider using a ruggedized PCB design, securing the device with a sturdy mechanical fastening, and following proper soldering and assembly techniques.
  • To troubleshoot issues with the DS1220AD-200IND+, start by verifying the power supply voltage, checking for proper PCB layout and assembly, and ensuring that the device is properly configured. Use a logic analyzer or oscilloscope to debug the device's digital outputs and verify that they match the expected behavior.
