DS1225AD-200+ footprint, schematic symbol and 3D model by Analog Devices

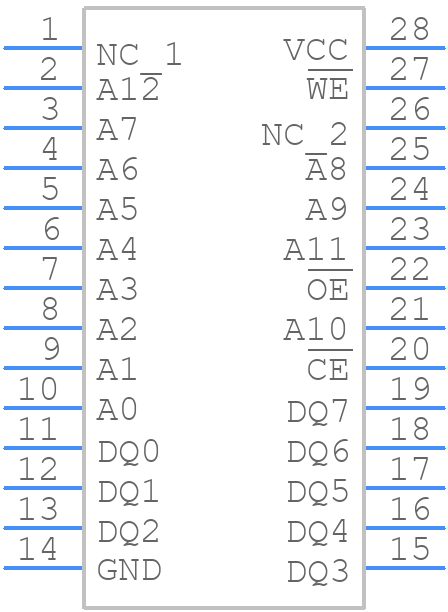

Symbol

click to zoom

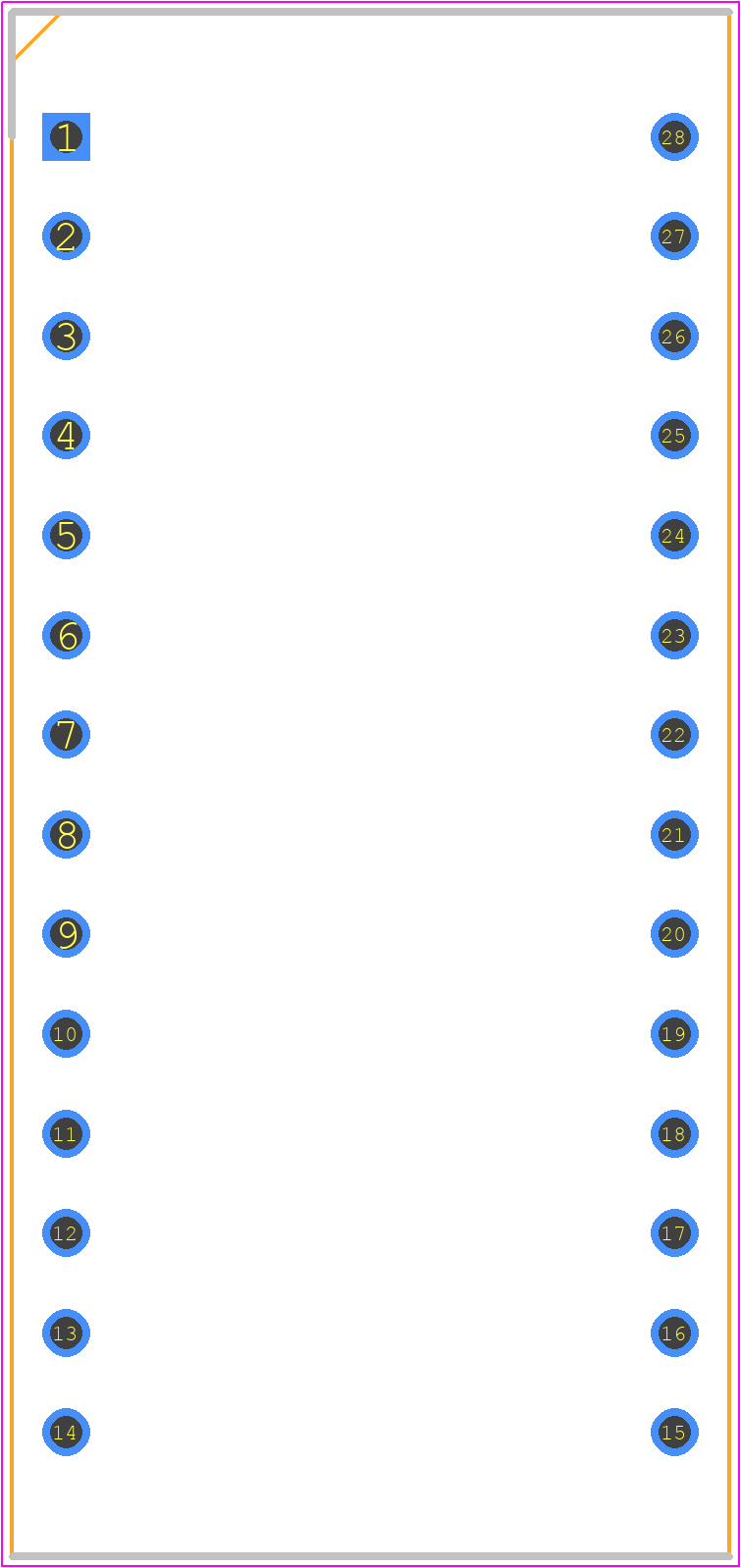

PCB Footprints

DS1225AD-200+ - Analog Devices PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DS1225AD-200+

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DS1225AD-200+
Part Number DS1225AD-200+
Manufacturer Analog Devices
Pin Count 28
Part Category Integrated Circuit
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DS1225AD-200+
Released Date Jan 10, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DS1225AD-200+ Details

Manufacturer Part Number:
DS1225AD-200+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
N/A
Package Description:
0.720 INCH, ROHS COMPLIANT, DIP-28
Pin Count:
28
Manufacturer Package Code:
N/A
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.32.00.41
Date Of Intro:
2002-10-30
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Access Time-Max:
200 ns
Additional Feature:
10 YEAR DATA RETENTION
JESD-30 Code:
R-PDMA-P28
JESD-609 Code:
e3
Memory Density:
65536 bit
Memory IC Type:
NON-VOLATILE SRAM MODULE
Memory Width:
8
Number of Functions:
1
Number of Terminals:
28
Number of Words:
8192 words
Number of Words Code:
8000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
70 °C
Organization:
8KX8
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP28,.6
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Parallel/Serial:
PARALLEL
Qualification Status:
Not Qualified
Standby Current-Max:
0.01 A
Supply Current-Max:
0.075 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL

DS1225AD-200+ Frequently Asked Questions (FAQs)

A good PCB layout for the DS1225AD-200+ involves keeping the crystal oscillator circuitry away from high-frequency signals, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the accuracy of the RTC, use a high-quality crystal oscillator with a low ppm tolerance, maintain a stable power supply, and minimize temperature variations. Also, use the calibration feature of the DS1225AD-200+ to adjust the RTC frequency to match the crystal oscillator frequency.
The DS1225AD-200+ can handle up to 10^6 write cycles per byte, making it suitable for applications that require frequent data logging or configuration changes.
To prevent data corruption during power failures, use a battery-backed RAM (BBRAM) or a supercapacitor to maintain power to the DS1225AD-200+ during power failures. Also, use the power-fail detect feature of the DS1225AD-200+ to detect power failures and prevent data corruption.
The recommended operating temperature range for the DS1225AD-200+ is -40°C to +85°C. However, the device can operate up to +125°C for short periods of time during reflow soldering or other high-temperature processes.

Trust Checks

Community Provided

System Verified

Community Approved

DS1225AD-200+ Overview

Use the download button to access the DS1225AD-200+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DS122, or try a keyword search, such as SRAMs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
