DS1225Y - Dallas Logic

Description: 1225Y

Download DS1225Y Model

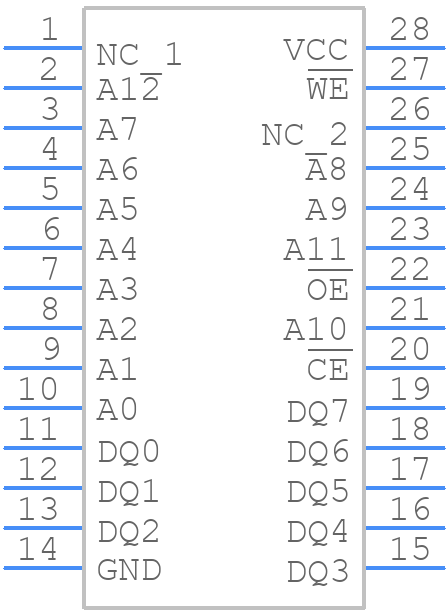

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

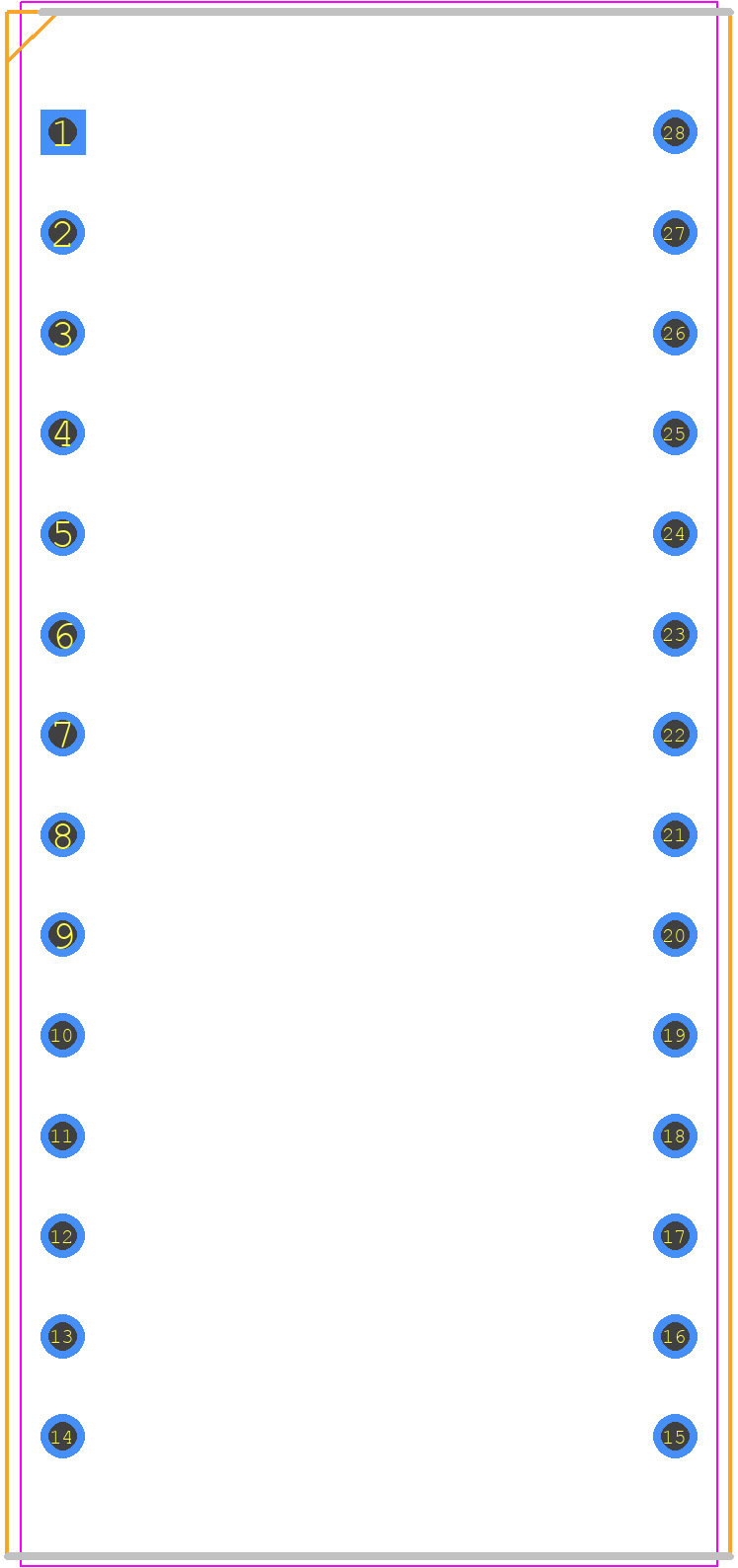

DS1225Y - Dallas Logic PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-PIN DIP
click to zoom
3D Models
DS1225Y - Dallas Logic  - 3D model - Dual-In-Line Packages - 28-PIN DIP
click to zoom

DS1225Y Details

  • Manufacturer Part Number:

    DS1225Y

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    DIP-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Dallas Semiconductor

  • Access Time-Max:

    200 ns

  • Additional Feature:

    BATTERY BACK-UP

  • JESD-30 Code:

    R-PDIP-T28

  • Memory Density:

    65536 bit

  • Memory IC Type:

    NON-VOLATILE SRAM MODULE

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    28

  • Number of Words:

    8192 words

  • Number of Words Code:

    8000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    8KX8

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

DS1225Y Frequently Asked Questions (FAQs)

  • The DS1225Y can support up to 256 devices on the same 1-Wire bus, but it's recommended to limit it to 64 devices for reliable operation.
  • The DS1225Y has a built-in power-on reset circuit that ensures the device is in a known state after power-up. It also has a brown-out detector to prevent incorrect operation during power-up or power-down.
  • Yes, the DS1225Y can be used in a multi-master environment, but it requires careful design and implementation to avoid bus contention and ensure reliable operation.
  • The maximum cable length for the 1-Wire bus depends on the specific application and environment, but a general guideline is to limit it to 100 meters. Longer cables may require repeaters or other signal conditioning devices.
  • The DS1225Y uses a unique 64-bit ROM ID to identify each device on the 1-Wire bus. This allows for unique addressing and identification of each device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1225Y Overview

Use the download button to access the DS1225Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS122, or try a keyword search, such as SRAMs
