DS1230Y-150+ - Analog Devices

Description: NVSRAM (Non-Volatile SRAM) Memory IC 256Kbit Parallel 150 ns 28-EDIP, MDT28+3

Download DS1230Y-150+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

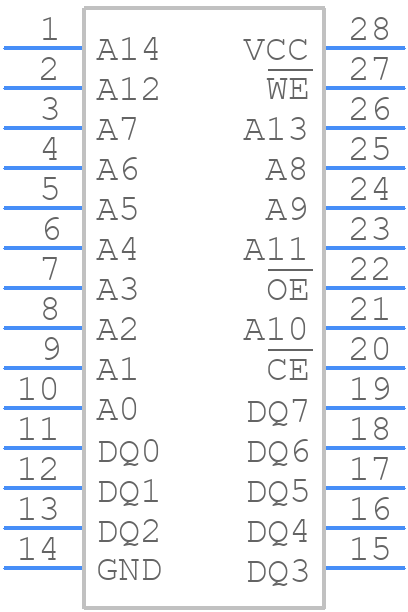

DS1230Y-150+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

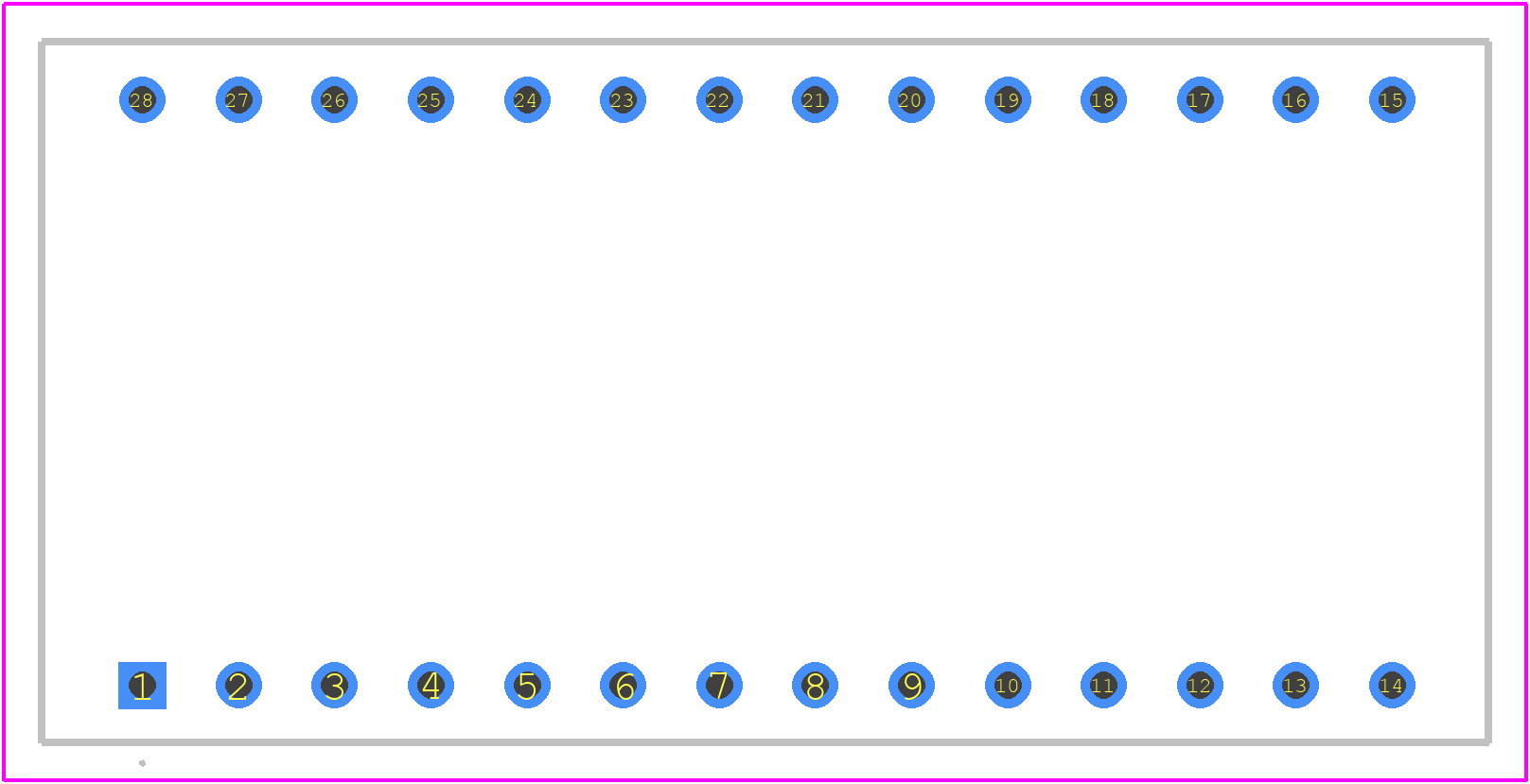

DS1230Y-150+ - Analog Devices PCB footprint - Other - Other - MDT28+3
click to zoom
3D Models
DS1230Y-150+ - Analog Devices - 3D model - Other - MDT28+3
click to zoom

DS1230Y-150+ Details

  • Manufacturer Part Number:

    DS1230Y-150+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    N/A

  • Package Description:

    0.740 INCH, ROHS COMPLIANT, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2002-10-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Access Time-Max:

    150 ns

  • JESD-30 Code:

    R-XDMA-P28

  • JESD-609 Code:

    e3

  • Memory Density:

    262144 bit

  • Memory IC Type:

    NON-VOLATILE SRAM MODULE

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    32KX8

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Parallel/Serial:

    PARALLEL

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.0006 A

  • Supply Current-Max:

    0.085 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

DS1230Y-150+ Frequently Asked Questions (FAQs)

  • It is recommended to place the DS1230Y-150+ as close as possible to the thermal source, with the thermal pad facing downwards. Ensure a solid copper pour on the PCB to act as a heat sink, and keep the device away from high-current traces and noise sources.
  • The DS1230Y-150+ does not require calibration. It is a digital thermometer with an internal temperature sensor and ADC, which provides a calibrated output. However, it's essential to follow the recommended layout and placement guidelines to ensure accurate measurements.
  • The maximum cable length for the 3-wire interface is not explicitly stated in the datasheet, but it's recommended to keep the cable length as short as possible (less than 10 inches) to minimize noise and signal degradation. Use a shielded cable with a twisted pair for the data lines and a separate wire for the power supply.
  • The DS1230Y-150+ is a surface-mount device, and its reliability in high-vibration or high-shock environments depends on the PCB design, mounting, and assembly. Ensure that the PCB is properly secured, and the device is mounted using a reliable soldering process. Consult the manufacturer's guidelines for vibration and shock testing.
  • The DS1230Y-150+ has an internal POR and BOD circuitry. The POR ensures that the device resets correctly during power-up, and the BOD detects brown-out conditions and resets the device. No external components are required to handle these features, but ensure that the power supply is stable and within the recommended operating range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1230Y-150+ Overview

Use the download button to access the DS1230Y-150+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS123, or try a keyword search, such as SRAMs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
