DS1307+ - Analog Devices

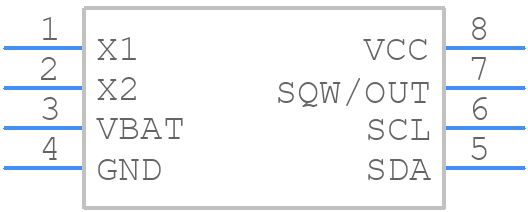

DS1307+ Details

• Manufacturer Part Number:

  DS1307+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8-PDIP-300_MIL

• Package Description:

  0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8

• Pin Count:

  8

• Manufacturer Package Code:

  8-PDIP-300_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2000-08-18

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Clock Frequency-Max:

  0.032 MHz

• Information Access Method:

  SERIAL(I2C)

• Interrupt Capability:

  N

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e3

• Length:

  9.375 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.572 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time-Min:

  SECONDS

• Time@Peak Reflow Temperature-Max (s):

  30

• Volatile:

  YES

• Width:

  7.62 mm

• uPs/uCs/Peripheral ICs Type:

  TIMER, REAL TIME CLOCK
