DS1390U-3+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - DS1390U-3+ - Alarm RTC IC, Date Time Format (Day/Date/Month/Year hh:mm:ss:hh), SPI, 2.7 V to 3.3 V, µSOP-10

Download DS1390U-3+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

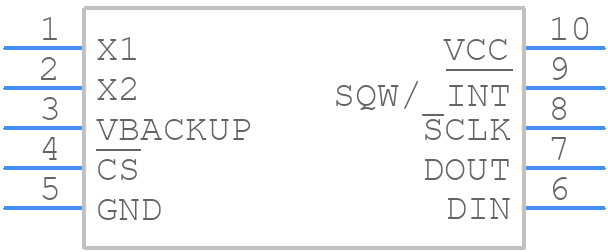

DS1390U-3+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1390U-3+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0061-1
click to zoom
3D Models
DS1390U-3+ - Analog Devices - 3D model - Small Outline Packages - 21-0061-1
click to zoom

DS1390U-3+ Details

  • Manufacturer Part Number:

    DS1390U-3+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-07-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(SPI), SERIAL, 3-WIRE

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    1/100 SECOND

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    NO

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

DS1390U-3+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for decoupling and place it close to the device.
  • The DS1390U-3+ requires a single 3.3V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the device after the input voltage has stabilized.
  • The maximum clock frequency is 100 MHz. The clock input should be a square wave with a 50% duty cycle, and the clock rise and fall times should be less than 5 ns.
  • The default output format is 2's complement binary. The output data can be formatted as 8-bit, 10-bit, or 12-bit words, depending on the application requirements. The output data format can be selected using the MODE pin.
  • The DS1390U-3+ can be synchronized with an external clock or trigger signal using the SYNC pin. The SYNC pin should be driven with a logic-level signal that meets the device's input requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1390U-3+ Overview

Use the download button to access the DS1390U-3+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS139, or try a keyword search, such as Timers or RTCs
