DS1558W+ - Analog Devices

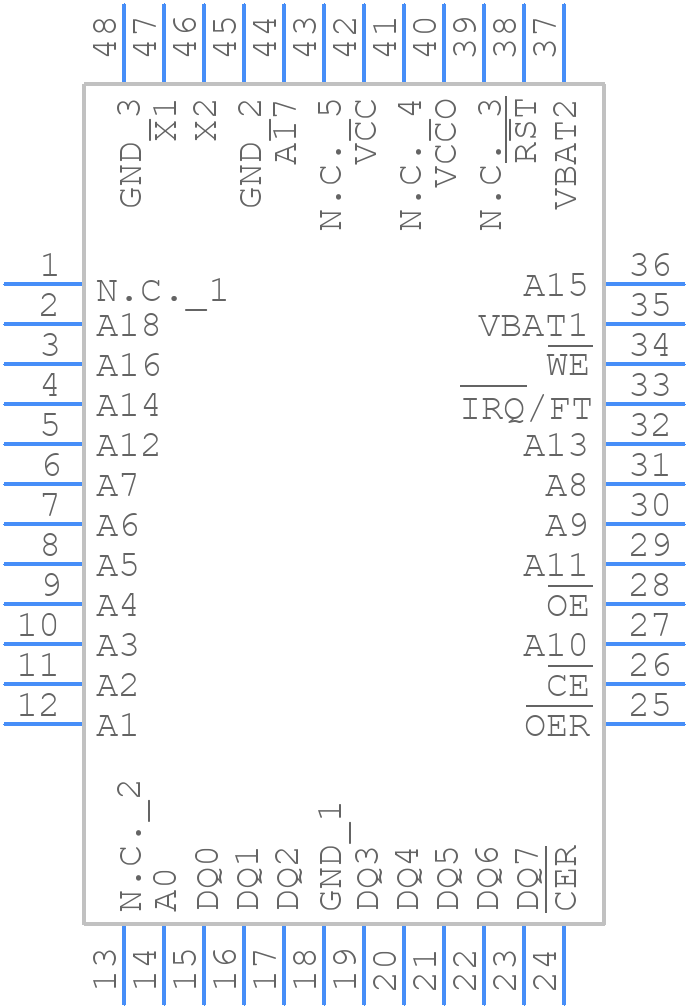

DS1558W+ Details

• Manufacturer Part Number:

  DS1558W+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  48-TQFP-7X7X1.0

• Package Description:

  7 X 7 MM, 1 MM HEIGHT, ROHS COMPLIANT, TQFP-48

• Pin Count:

  48

• Manufacturer Package Code:

  48-TQFP-7X7X1.0

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2002-08-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Clock Frequency-Max:

  0.032 MHz

• External Data Bus Width:

  8

• Information Access Method:

  PARALLEL, DIRECT ADDRESS

• Interrupt Capability:

  Y

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Equivalence Code:

  TQFP48,.35SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  3.63 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time-Min:

  SECONDS

• Time@Peak Reflow Temperature-Max (s):

  30

• Volatile:

  NO

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  TIMER, REAL TIME CLOCK
