- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DS1620S+
- Part Number DS1620S+
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 21-0262
- Released Date Jan 2, 2021
- Last Modified Date Nov 14, 2025 4:26 PM UTC
- Pinout / Pin List Click Here (Member Only)
DS1620S+ Details
-
Manufacturer Part Number:
DS1620S+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
8-SOIC_W-300_MIL
-
Package Description:
0.208 INCH, LEAD FREE, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
8-SOIC_W-300_MIL
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
Date Of Intro:
1999-07-20
-
Manufacturer:
Analog Devices Inc
DS1620S+ Frequently Asked Questions (FAQs)
-
The DS1620S+ can be connected to a single 1-Wire bus along with other 1-Wire devices, but the maximum number of devices is limited by the bus capacitance and the pull-up resistor value. A typical limit is around 10-15 devices, but this can be increased with the use of repeaters or buffers.
-
The DS1620S+ has a temperature accuracy of ±0.5°C from -10°C to +85°C, and ±1°C from -40°C to +125°C. However, this accuracy can be affected by factors such as thermal gradients, self-heating, and noise on the 1-Wire bus.
-
Yes, the DS1620S+ can be used in a multi-drop configuration, where multiple devices are connected to the same 1-Wire bus. Each device has a unique 64-bit ROM code that allows it to be addressed individually.
-
The DS1620S+ has a typical power consumption of 1.5mA during temperature conversions, and less than 1µA in standby mode. The power consumption can be further reduced by using the device's power-down mode.
-
The DS1620S+ can convert temperature readings at a rate of up to 4 conversions per second. However, the actual conversion rate may be limited by the 1-Wire bus speed and the host controller's ability to issue commands.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
DS1620S+ Overview

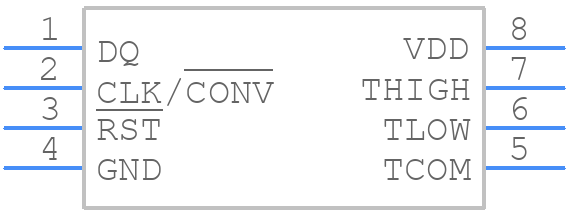

Use the download button to access the DS1620S+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS162,
or try a keyword search, such as Temperature Sensors
