DS1624+ - Analog Devices

Description: DS1624 thermometer & EEPROM I2C DIP8 DS1624+, 13 bit Temperature Sensor ±0.5°C Serial-2 Wire 2.7 → 5.5 V 8-Pin PDIP N

Download DS1624+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

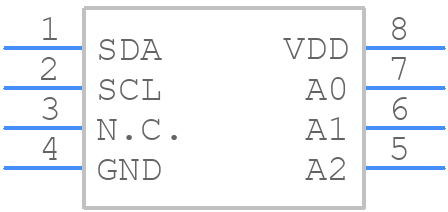

DS1624+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1624+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 DIP
click to zoom
3D Models
DS1624+ - Analog Devices - 3D model - Dual-In-Line Packages - 8 DIP
click to zoom

DS1624+ Details

  • Manufacturer Part Number:

    DS1624+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    1999-07-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Accuracy-Max (Cel):

    0.5 Cel

  • Additional Feature:

    COMPLIANCE TO MIL-300

  • Body Breadth:

    6.985 mm

  • Body Height:

    4.572 mm

  • Body Length or Diameter:

    9.375 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    8

  • Operating Current-Max:

    1 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

DS1624+ Frequently Asked Questions (FAQs)

  • The DS1624+ can be connected to a single 1-Wire bus with up to 256 devices, but it's recommended to limit the number of devices to 10-15 to ensure reliable communication.
  • The DS1624+ has a built-in power-on reset circuit that initializes the device to a known state when power is applied. This ensures that the device starts in a consistent state, even if the power supply is noisy or has a slow rise time.
  • Yes, the DS1624+ can be used in a multi-drop configuration, where multiple devices are connected to the same 1-Wire bus. Each device has a unique 64-bit ROM code that allows it to be addressed individually.
  • The DS1624+ has a temperature measurement accuracy of ±0.5°C from -10°C to +85°C, and ±1°C from -40°C to +125°C. This accuracy is achieved through the use of a high-resolution 12-bit ADC and a precision temperature sensor.
  • Yes, the DS1624+ has built-in noise filtering and error detection mechanisms to ensure reliable communication in noisy environments. The device also has a high level of electromagnetic compatibility (EMC) to minimize interference.
