DS1685EN-3+ - Analog Devices

Description: Maxim DS1685EN-3+ Real Time Clock — Alarm, Calendar, 128B RAM 24-Pin TSSOP

Download DS1685EN-3+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

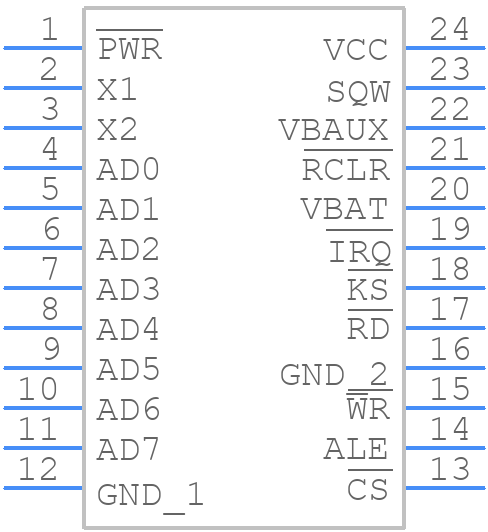

Symbol
DS1685EN-3+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1685EN-3+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U24+1
click to zoom
3D Models
DS1685EN-3+ - Analog Devices - 3D model - Small Outline Packages - U24+1
click to zoom

DS1685EN-3+ Details

  • Manufacturer Part Number:

    DS1685EN-3+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-TSSOP_4.4-4.4_MM

  • Package Description:

    0.173 INCH, ROHS COMPLIANT, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    0.032 MHz

  • External Data Bus Width:

    8

  • Information Access Method:

    PARALLEL, MUXED BUS

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    3.7 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    YES

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK
