DS1687-3+ - Analog Devices

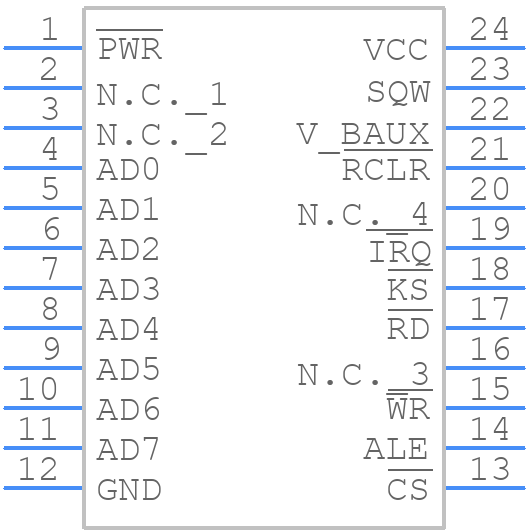

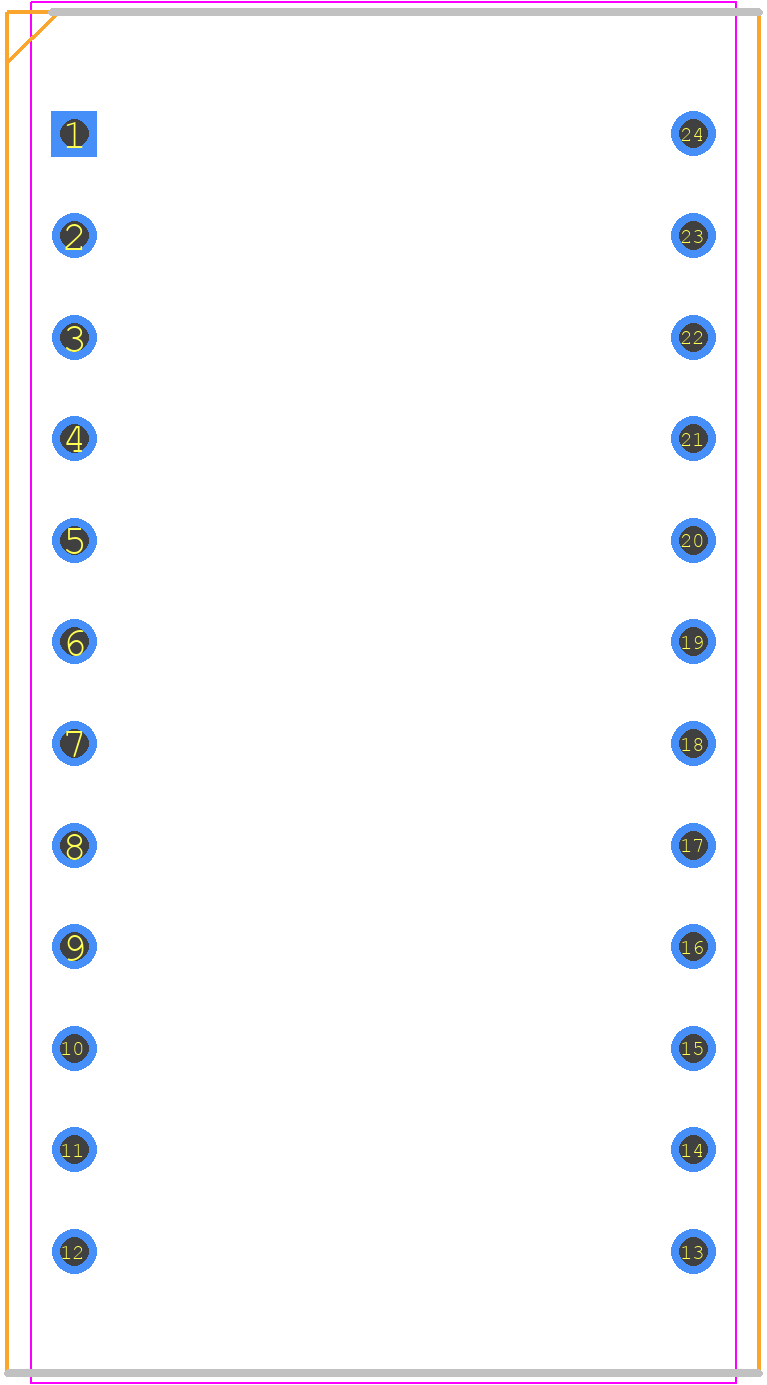

DS1687-3+ Details

• Manufacturer Part Number:

  DS1687-3+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  N/A

• Package Description:

  0.740 INCH, ROHS COMPLIANT, EDIP-24

• Pin Count:

  24

• Manufacturer Package Code:

  N/A

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2002-08-09

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Clock Frequency-Max:

  0.032 MHz

• External Data Bus Width:

  8

• Information Access Method:

  PARALLEL, MUXED BUS

• Interrupt Capability:

  Y

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e3

• Length:

  33.782 mm

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  9.398 mm

• Supply Voltage-Max:

  3.7 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time-Min:

  SECONDS

• Volatile:

  YES

• Width:

  15.24 mm

• uPs/uCs/Peripheral ICs Type:

  TIMER, REAL TIME CLOCK
