Part Image

DS1687-5+ - Analog Devices

Description: Real Time Clock 3V/5V Real-Time Clock

Download DS1687-5+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

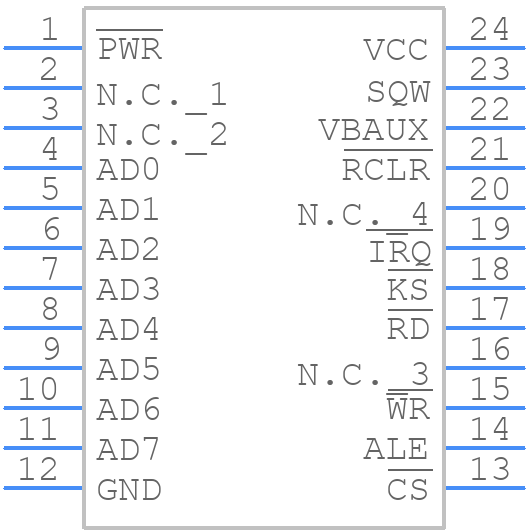

DS1687-5+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

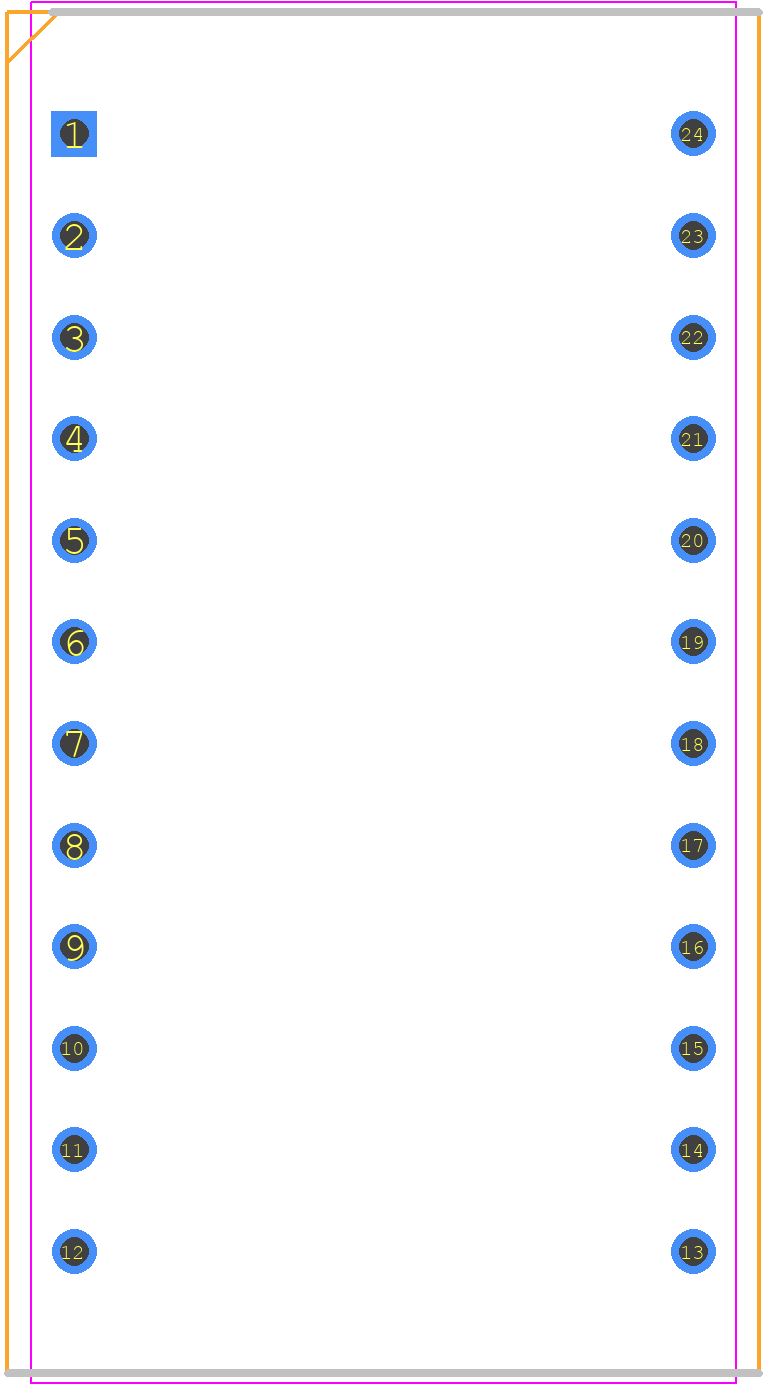

DS1687-5+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MDP24+2
click to zoom
3D Models
DS1687-5+ - Analog Devices - 3D model - Dual-In-Line Packages - MDP24+2
click to zoom

DS1687-5+ Details

  • Manufacturer Part Number:

    DS1687-5+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    N/A

  • Package Description:

    0.740 INCH, ROHS COMPLIANT, EDIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    0.032 MHz

  • External Data Bus Width:

    8

  • Information Access Method:

    PARALLEL, MUXED BUS

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    33.782 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    9.398 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Volatile:

    YES

  • Width:

    15.24 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

DS1687-5+ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input signals. This ensures proper device operation and prevents latch-up.
  • To ensure accurate temperature measurement, it's essential to follow proper PCB layout and thermal design guidelines, including keeping the device away from heat sources, using thermal vias, and minimizing thermal gradients.
  • The maximum cable length for the 1-Wire interface is approximately 100 meters, but this can vary depending on the cable type, noise environment, and system design. It's recommended to use a shielded cable and follow proper termination and layout guidelines.
  • Yes, the DS1687-5+ supports multi-drop configurations, allowing multiple devices to share the same 1-Wire bus. However, it's essential to follow proper bus layout and termination guidelines to ensure reliable operation.
  • The DS1687-5+ has built-in error detection and correction mechanisms. In case of errors, the master device should retry the transaction, and the DS1687-5+ will automatically retry the operation. It's recommended to implement a retry mechanism in the master device's firmware to handle errors and ensure reliable communication.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1687-5+ Overview

Use the download button to access the DS1687-5+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS168, or try a keyword search, such as Timers or RTCs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
