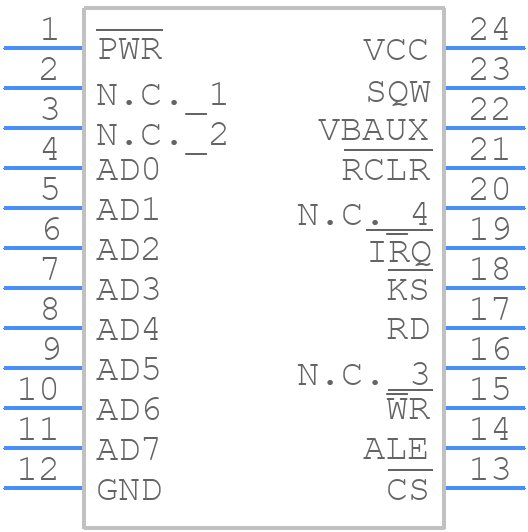

DS17887-5+ footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

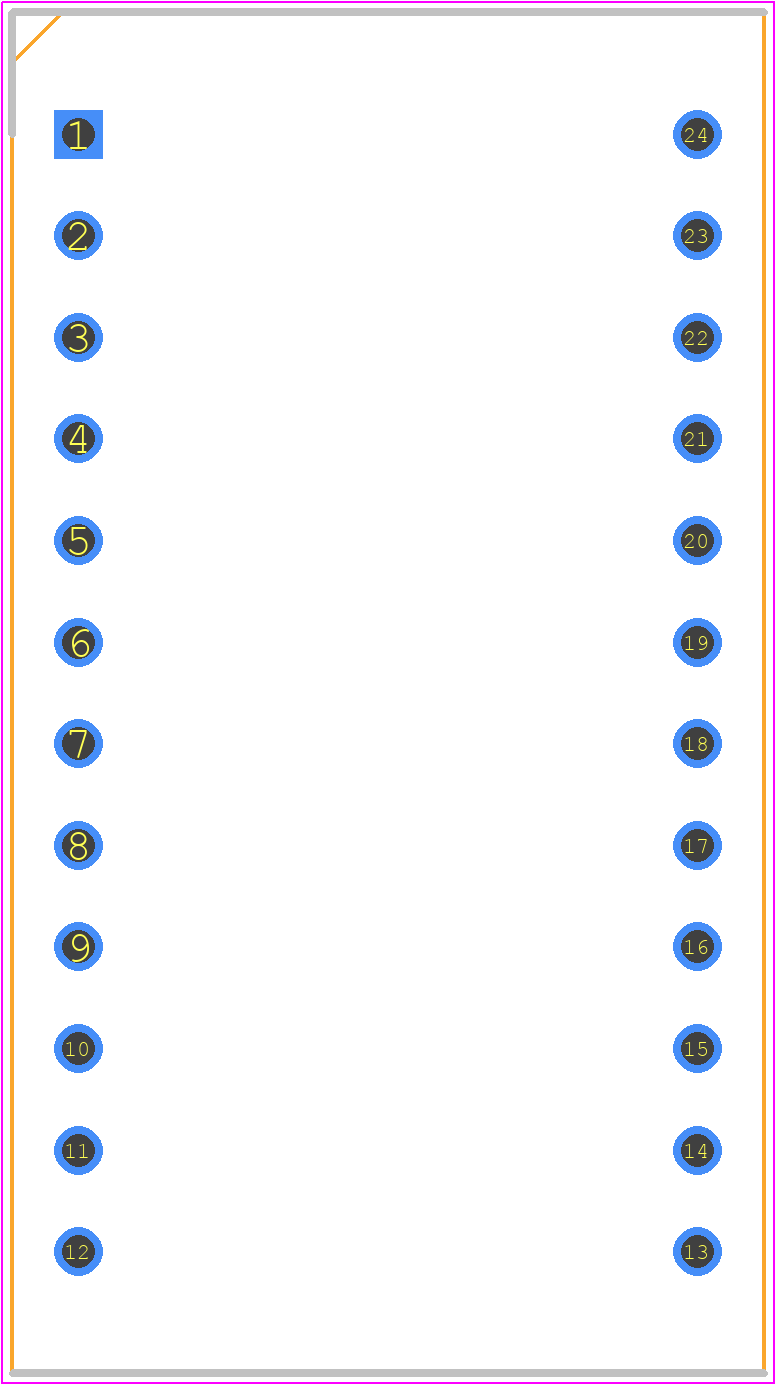

DS17887-5+ - Analog Devices PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - EDIP_24

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DS17887-5+
Part Number DS17887-5+
Manufacturer Analog Devices
Pin Count 24
Part Category Integrated Circuit
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - EDIP_24
Released Date Dec 1, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DS17887-5+ Details

Manufacturer Part Number:
DS17887-5+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
N/A
Package Description:
0.720 INCH, ENCAPSULATED, DIP-24
Pin Count:
24
Manufacturer Package Code:
N/A
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2002-05-08
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Clock Frequency-Max:
0.032 MHz
External Data Bus Width:
8
Information Access Method:
PARALLEL, MUXED BUS
Interrupt Capability:
Y
JESD-30 Code:
R-PDIP-T24
JESD-609 Code:
e3
Length:
33.782 mm
Number of Terminals:
24
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP24,.6
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
9.398 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time-Min:
SECONDS
Volatile:
NO
Width:
15.24 mm
uPs/uCs/Peripheral ICs Type:
TIMER, REAL TIME CLOCK

DS17887-5+ Frequently Asked Questions (FAQs)

The recommended layout and routing for the DS17887-5+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure accurate temperature measurement with the DS17887-5+, it's essential to follow proper thermal design practices, such as placing the device in close proximity to the thermal source, using a thermally conductive material, and minimizing thermal gradients. Additionally, calibrating the device and using the built-in temperature compensation features can also improve accuracy.
The maximum clock frequency that can be used with the DS17887-5+ is 100 kHz. However, it's recommended to use a clock frequency between 32 kHz and 50 kHz for optimal performance and accuracy.
During power-down, the BBRAM in the DS17887-5+ is automatically switched to battery-backup mode. When power is restored, the device automatically switches back to normal operation. It's essential to ensure that the battery is properly connected and has sufficient capacity to maintain the BBRAM contents during power-down cycles.
The recommended power-up sequence for the DS17887-5+ involves applying power to the VCC pin first, followed by the VBAT pin. This ensures that the device powers up correctly and that the BBRAM contents are preserved.

Trust Checks

Community Provided

System Verified

Community Approved

DS17887-5+ Overview

Use the download button to access the DS17887-5+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DS178, or try a keyword search, such as Timers or RTCs
