DS1801+ - Analog Devices

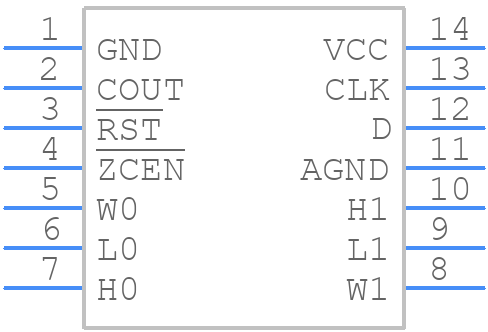

DS1801+ Details

• Manufacturer Part Number:

  DS1801+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

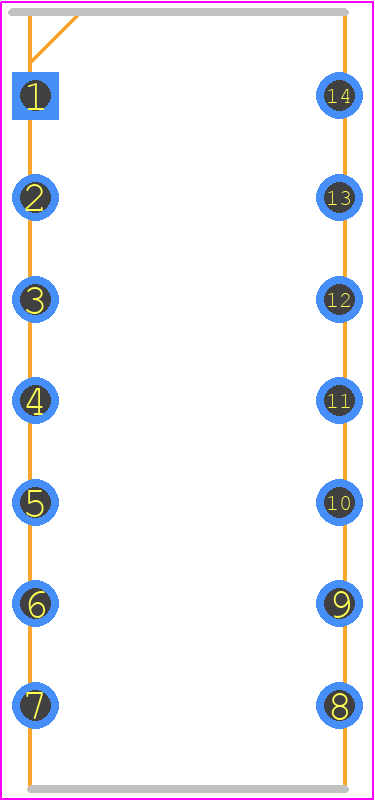

• Part Package Code:

  14-PDIP-300_MIL

• Package Description:

  0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-14

• Pin Count:

  14

• Manufacturer Package Code:

  14-PDIP-300_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2000-03-03

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  OTHER RESISTOR VALUE IS 45000 OHMS WITH 65 TAP POSITIONS

• Bandwidth-Nom:

  0.7 kHz

• Control Interface:

  3-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDIP-T14

• JESD-609 Code:

  e3

• Length:

  19.05 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Positions:

  65

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Resistance Law:

  LOGARITHMIC

• Resistance Tolerance-Max:

  20%

• Resistor Terminal Voltage-Max:

  3.5 V

• Resistor Terminal Voltage-Min:

  -0.5 V

• Seated Height-Max:

  4.572 mm

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  NO

• Temperature Coefficient-Nom:

  750 ppm/°C

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Resistance-Nom:

  45000 Ω

• Width:

  7.62 mm
