DS18030-010+ - Analog Devices

Description: DS18030-010+, Digital Potentiometer 10kΩ 256-Position Linear 2-channel Serial-2 Wire 16-Pin PDIP N

Download DS18030-010+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

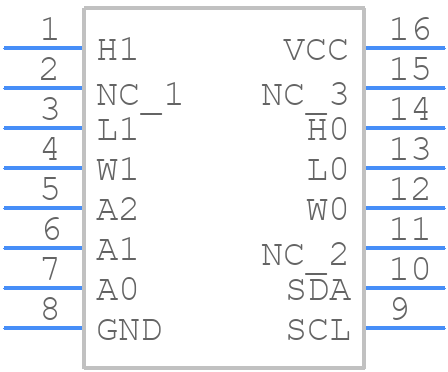

DS18030-010+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS18030-010+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P16+1
click to zoom
3D Models
DS18030-010+ - Analog Devices - 3D model - Dual-In-Line Packages - P16+1
click to zoom

DS18030-010+ Details

  • Manufacturer Part Number:

    DS18030-010+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    16-PDIP-300_MIL

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-10-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES FROM 5 V NOMINAL SUPPLY

  • Bandwidth-Nom:

    1 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.175 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    3.5 V

  • Resistor Terminal Voltage-Min:

    -0.5 V

  • Seated Height-Max:

    4.572 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    750 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    7.62 mm

DS18030-010+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the DS18030-010+ involves placing the device near the signal source, using a ground plane to reduce noise, and keeping the input and output traces separate to minimize crosstalk. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate temperature measurement, it's essential to provide a stable power supply, minimize thermal gradients, and avoid self-heating effects. The device should be mounted on a thermally conductive surface, and the temperature sensor should be placed close to the device being measured.
  • The maximum cable length for the DS18030-010+ depends on the specific application and the type of cable used. As a general rule, the cable length should be kept as short as possible to minimize signal attenuation and noise pickup. A maximum cable length of 10 feet (3 meters) is recommended.
  • Yes, the DS18030-010+ is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to prevent mechanical stress and damage. A vibration-resistant mounting method, such as a screw-down or adhesive mounting, is recommended.
  • Common issues with the DS18030-010+ include incorrect output voltage, temperature measurement errors, and communication errors. To troubleshoot these issues, check the power supply, signal connections, and communication protocols. Ensure that the device is properly configured and calibrated, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS18030-010+ Overview

Use the download button to access the DS18030-010+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS180, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
