DS18030-100+ - Analog Devices

Description: DS18030-100+, Digital Potentiometer 100 kΩ 256-Position Linear 2-channel Serial-2 Wire 16-Pin PDIP N

Download DS18030-100+ Model
Schematic

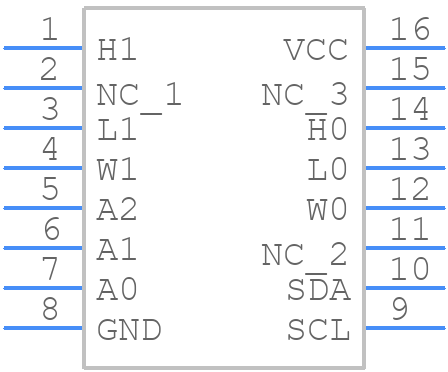

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

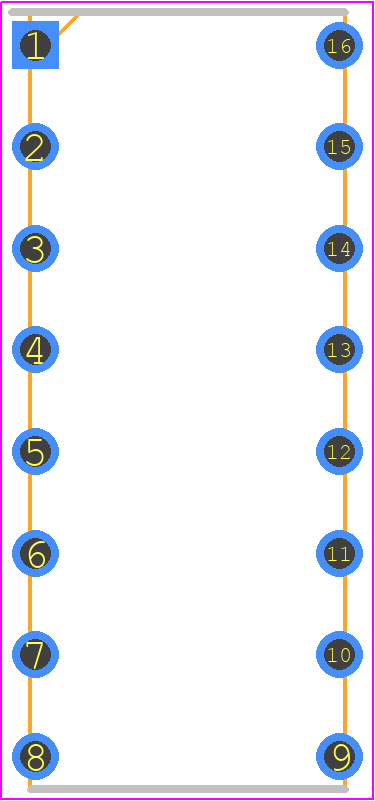

DS18030-100+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16 PDIP
click to zoom

DS18030-100+ Details

  • Manufacturer Part Number:

    DS18030-100+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-PDIP-300_MIL

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-10-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES FROM 5 V NOMINAL SUPPLY

  • Bandwidth-Nom:

    0.1 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.175 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    3.5 V

  • Resistor Terminal Voltage-Min:

    -0.5 V

  • Seated Height-Max:

    4.572 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    750 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    7.62 mm

DS18030-100+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS18030-100+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a low-ESR capacitor for the VCC pin and to keep the input traces as short as possible.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the temperature sensor should be placed in a thermally conductive material to ensure good heat transfer.
  • The maximum cable length for the DS18030-100+ digital interface depends on the specific application and the signal frequency. As a general rule, the cable length should be kept as short as possible to minimize signal attenuation and noise. A good starting point is to limit the cable length to 10 inches (25 cm) or less.
  • Yes, the DS18030-100+ is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the device should be operated within its specified temperature range, and the PCB should be designed to withstand the vibration levels.
  • To troubleshoot issues with the DS18030-100+, start by checking the power supply voltage, ensuring that it's within the specified range. Then, verify that the device is properly configured and that the input signals are within the specified ranges. Use an oscilloscope to check the output signals and look for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance.
