DS1803Z-100+ footprint, schematic symbol and 3D model by Analog Devices

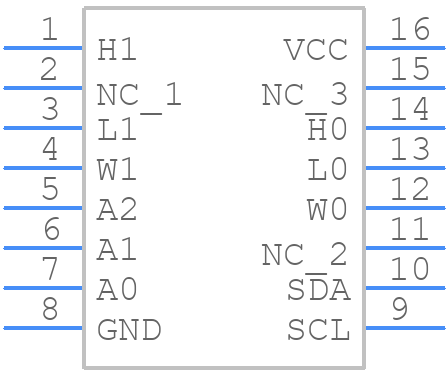

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DS1803Z-100+
Part Number DS1803Z-100+
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - S16+1
Released Date Jan 8, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DS1803Z-100+ Details

Manufacturer Part Number:
DS1803Z-100+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
16-SOIC_N-150_MIL
Package Description:
0.150 INCH, ROHS COMPLIANT, SOIC-16
Pin Count:
16
Manufacturer Package Code:
16-SOIC_N-150_MIL
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.60
Date Of Intro:
1999-10-15
Manufacturer:
Analog Devices Inc
YTEOL:
9
Additional Feature:
ALSO OPERATES FROM 5 V NOMINAL SUPPLY
Bandwidth-Nom:
0.1 kHz
Control Interface:
2-WIRE SERIAL
Converter Type:
DIGITAL POTENTIOMETER
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
2
Number of Positions:
256
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Resistance Law:
LINEAR
Resistance Tolerance-Max:
20%
Resistor Terminal Voltage-Max:
3.5 V
Resistor Terminal Voltage-Min:
-0.5 V
Seated Height-Max:
1.75 mm
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Coefficient-Nom:
750 ppm/°C
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Total Resistance-Nom:
100000 Ω
Width:
3.9 mm

DS1803Z-100+ Frequently Asked Questions (FAQs)

A good PCB layout for the DS1803Z-100+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground layer is recommended.
To ensure accurate temperature measurement, it's essential to follow proper thermal design practices, such as using a thermally conductive material for the PCB, keeping the device away from heat sources, and using a thermocouple or thermistor with a high accuracy rating.
The maximum cable length for the DS1803Z-100+ digital interface depends on the specific application and the type of cable used. As a general rule, a cable length of up to 10 meters is recommended for reliable operation. However, this can be extended up to 30 meters with the use of repeaters or active cables.
Yes, the DS1803Z-100+ is designed to operate in high-vibration environments. However, it's essential to follow proper mounting and packaging guidelines to ensure the device's reliability and accuracy. Additionally, the device's performance may be affected by extreme vibration levels, so it's recommended to perform thorough testing and validation in the target environment.
The DS1803Z-100+ does not require calibration for temperature measurement. However, it's recommended to perform a system-level calibration to ensure accurate temperature measurement, taking into account the thermocouple or thermistor characteristics, as well as any system-level errors or offsets.

Trust Checks

Community Provided

System Verified

Community Approved

DS1803Z-100+ Overview

Use the download button to access the DS1803Z-100+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DS180, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
