DS1807S+ - Analog Devices

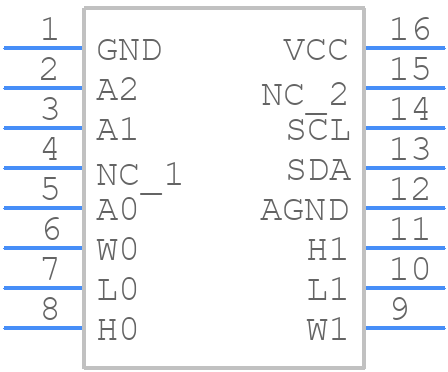

DS1807S+ Details

• Manufacturer Part Number:

  DS1807S+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  16-SOIC_W-300_MIL

• Package Description:

  0.300 INCH, SOIC-16

• Pin Count:

  16

• Manufacturer Package Code:

  16-SOIC_W-300_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1999-11-04

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Control Interface:

  2-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Positions:

  65

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Resistance Law:

  LOGARITHMIC

• Resistance Tolerance-Max:

  20%

• Resistor Terminal Voltage-Max:

  6 V

• Resistor Terminal Voltage-Min:

  -0.5 V

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Coefficient-Nom:

  750 ppm/°C

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Resistance-Nom:

  45000 Ω

• Width:

  7.5 mm
