DS1848B-050+ - Analog Devices

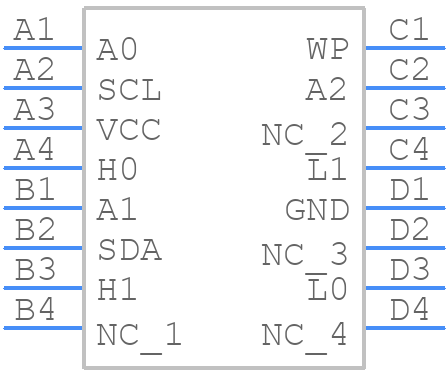

DS1848B-050+ Details

• Manufacturer Part Number:

  DS1848B-050+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  16-CSP_BGA-4X4X1

• Package Description:

  4 X 4 MM, LEAD FREE, CSBGA-16

• Pin Count:

  16

• Manufacturer Package Code:

  16-CSP_BGA-4X4X1

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2002-08-20

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  NONVOLATILE MEMORY; OTHER RESISTOR VALUE IS 10000 OHM; IT CAN ALSO OPERATE FROM A 5V SUPPLY

• Bandwidth-Nom:

  0.125 kHz

• Control Interface:

  2-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  S-PBGA-B16

• JESD-609 Code:

  e1

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  2

• Number of Positions:

  256

• Number of Terminals:

  16

• Operating Temperature-Max:

  95 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LBGA

• Package Equivalence Code:

  BGA16,4X4,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  20%

• Resistor Terminal Voltage-Max:

  3.3 V

• Resistor Terminal Voltage-Min:

  -0.3 V

• Seated Height-Max:

  1.5 mm

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Temperature Coefficient-Nom:

  850 ppm/°C

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Resistance-Nom:

  50000 Ω

• Width:

  4 mm
