DS18B20Z+ - Analog Devices

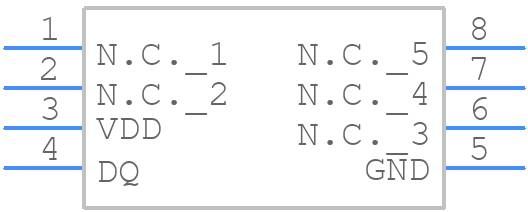

DS18B20Z+ Details

• Manufacturer Part Number:

  DS18B20Z+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8-SOIC_N-150_MIL

• Package Description:

  SOIC-8

• Pin Count:

  8

• Manufacturer Package Code:

  8-SOIC_N-150_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• Date Of Intro:

  2001-04-30

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Accuracy-Max (Cel):

  0.5 Cel

• Additional Feature:

  COMPLIANCE TO MIL-150

• Body Breadth:

  3.9 mm

• Body Height:

  1.55 mm

• Body Length or Diameter:

  4.9 mm

• Housing:

  PLASTIC

• JESD-609 Code:

  e3

• Mounting Feature:

  SURFACE MOUNT

• Number of Bits:

  12

• Number of Terminals:

  8

• Operating Current-Max:

  1.5 mA

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Interface Type:

  1-WIRE INTERFACE

• Package Body Material:

  PLASTIC/EPOXY

• Package Equivalence Code:

  SOP8,.25

• Package Shape/Style:

  RECTANGULAR

• Sensors/Transducers Type:

  TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Termination Type:

  SOLDER
