DS1E-S-DC48V - Panasonic

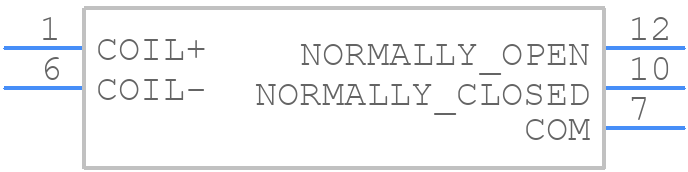

DS1E-S-DC48V Details

• Manufacturer Part Number:

  DS1E-S-DC48V

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Factory Lead Time:

  17 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  8

• Body Breadth:

  9.9 mm

• Body Height:

  9.9 mm

• Body Length or Diameter:

  15 mm

• Coil Current(DC)-Max:

  0.004 A

• Coil Operate Voltage(DC):

  38.4 V

• Coil Power:

  200 mW

• Coil Release Voltage(DC):

  4.8 V

• Coil Resistance:

  11520 Ω

• Coil Voltage(DC)-Max:

  48 V

• Coil Voltage-Nom:

  48 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  125VA@250VAC

• Contact (AC) Max Rating R Load:

  2A@250VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Power Rating R Load:

  60W@220VDC

• Contact (DC) Max Rating R Load:

  2A@30VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  500000 Cycle(s)

• End Contact Material:

  Silver

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  5

• Operate Time:

  10 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  15mm x 9.9mm x 9.9mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Sealing:

  EPOXY RESIN SEALED

• Surface Mount:

  NO

• Terminal Finish:

  Gold (Au)

• Terminal Length:

  0.0034010668021336042 inch

• Termination Type:

  SOLDER
