DS24B33S+ - Analog Devices

Description: EEPROM 1-WIRE 4KB EEPROM W/200K WRITE/ERASE CYCLE

Download DS24B33S+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

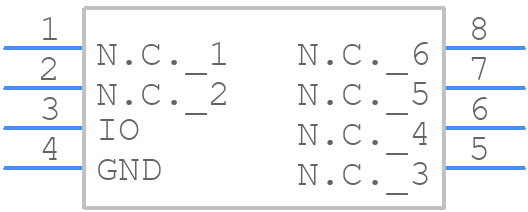

Symbol
DS24B33S+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS24B33S+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W8+2
click to zoom
3D Models
DS24B33S+ - Analog Devices - 3D model - Small Outline Packages - W8+2
click to zoom

DS24B33S+ Details

  • Manufacturer Part Number:

    DS24B33S+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_W-300_MIL

  • Package Description:

    0.208 INCH, ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2011-04-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Endurance:

    50000 Write/Erase Cycles

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.31 mm

  • Memory Density:

    4096 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    1

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4096 words

  • Number of Words Code:

    4000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4KX1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.13 mm

  • Serial Bus Type:

    1-WIRE

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.285 mm

DS24B33S+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS24B33S+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure accurate temperature measurements, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, using a thermocouple or other temperature sensor with a high accuracy and low thermal mass can help to improve measurement accuracy.
  • The maximum cable length for the 1-Wire interface of the DS24B33S+ is approximately 100 meters, but this can vary depending on the cable quality, noise environment, and other factors. It's recommended to use a high-quality cable with a shielded twisted pair and to follow proper termination and routing practices to minimize signal degradation.
  • Yes, the DS24B33S+ can be used in a multi-drop configuration, but it's essential to ensure that each device has a unique ROM code and that the master device can handle the increased bus capacitance. Additionally, using a repeater or a buffer can help to improve signal integrity and reduce the risk of signal degradation.
  • To troubleshoot issues with the DS24B33S+, start by verifying the power supply and clock signals, then check the 1-Wire bus for signal integrity and noise. Use a logic analyzer or oscilloscope to capture and analyze the 1-Wire signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS24B33S+ Overview

Use the download button to access the DS24B33S+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS24B, or try a keyword search, such as EEPROMs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
