DS28E16Q+T - Analog Devices

Description: Security ICs / Authentication ICs 1-Wire SHA3-256 Cost Efficient Secure Au

Download DS28E16Q+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

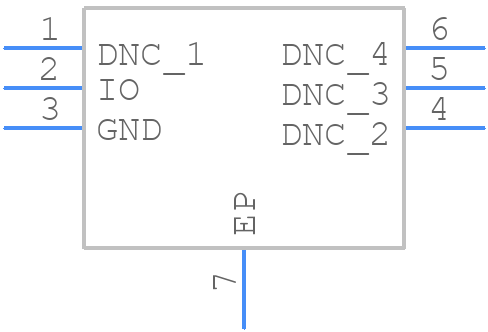

Symbol
DS28E16Q+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS28E16Q+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T633+2
click to zoom
3D Models
DS28E16Q+T - Analog Devices - 3D model - Small Outline No-lead - T633+2
click to zoom

DS28E16Q+T Details

  • Manufacturer Part Number:

    DS28E16Q+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Package Description:

    TDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2019-05-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.12,37

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

DS28E16Q+T Frequently Asked Questions (FAQs)

  • The DS28E16Q+T can support up to 256 devices on a single 1-Wire bus, but the actual number of devices that can be connected depends on the specific application and the bus capacitance.
  • The DS28E16Q+T has an internal voltage regulator that can tolerate power supply noise and voltage drops. It can operate with a supply voltage range of 2.8V to 5.25V, and has a built-in brown-out detector to prevent data corruption during power-down events.
  • The DS28E16Q+T has a data retention period of at least 10 years at 25°C, and up to 40 years at 0°C. However, the actual data retention period may vary depending on the storage conditions and the quality of the device.
  • The DS28E16Q+T is rated for operation up to 85°C, but it can be used in high-temperature applications up to 125°C with some limitations. However, the device's performance and data retention may be affected at high temperatures, and the user should consult the datasheet and application notes for more information.
  • The DS28E16Q+T has built-in ESD protection and can withstand electrostatic discharges up to 4kV. It also has protection against other forms of electrical stress, such as overvoltage and latch-up. However, the user should still follow proper handling and assembly procedures to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS28E16Q+T Overview

Use the download button to access the DS28E16Q+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS28E, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
