DS2E-M-DC24V - Panasonic

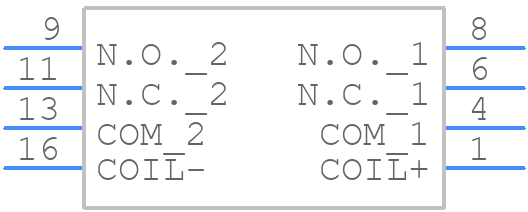

DS2E-M-DC24V Details

• Manufacturer Part Number:

  DS2E-M-DC24V

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Body Breadth:

  9.9 mm

• Body Height:

  9.9 mm

• Body Length or Diameter:

  20 mm

• Coil Current(DC)-Max:

  0.017 A

• Coil Operate Voltage(DC):

  16.8 V

• Coil Power:

  400 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  1440 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  125VA@250VAC

• Contact (AC) Max Rating R Load:

  2A@250VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Power Rating R Load:

  60W@220VDC

• Contact (DC) Max Rating R Load:

  2A@30VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  500000 Cycle(s)

• End Contact Material:

  Silver

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT MOUNT

• Number of Terminals:

  8

• Operate Time:

  10 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  20mm x 9.9mm x 9.9mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Sealing:

  EPOXY RESIN SEALED

• Surface Mount:

  NO

• Terminal Finish:

  Gold (Au)

• Terminal Length:

  0.002999745999491999 inch

• Termination Type:

  SOLDER
