DS2E-SL2-DC12V - Panasonic

DS2E-SL2-DC12V Details

• Manufacturer Part Number:

  DS2E-SL2-DC12V

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Body Breadth:

  9.9 mm

• Body Height:

  9.9 mm

• Body Length or Diameter:

  20 mm

• Coil Current(DC)-Max:

  0.015 A

• Coil Operate Voltage(DC):

  8.4 V

• Coil Power:

  180 mW

• Coil Release Voltage(DC):

  8.4 V

• Coil Resistance:

  800 Ω

• Coil Voltage(DC)-Max:

  26.4 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  125VA@250VAC

• Contact (AC) Max Rating R Load:

  3A@250VAC

• Contact Current(AC)-Max:

  3 A

• Contact Current(DC)-Max:

  3 A

• Contact (DC) Max Power Rating R Load:

  60W@220VDC

• Contact (DC) Max Rating R Load:

  2A@30VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  220 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  500000 Cycle(s)

• End Contact Material:

  Silver

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• JESD-609 Code:

  e4

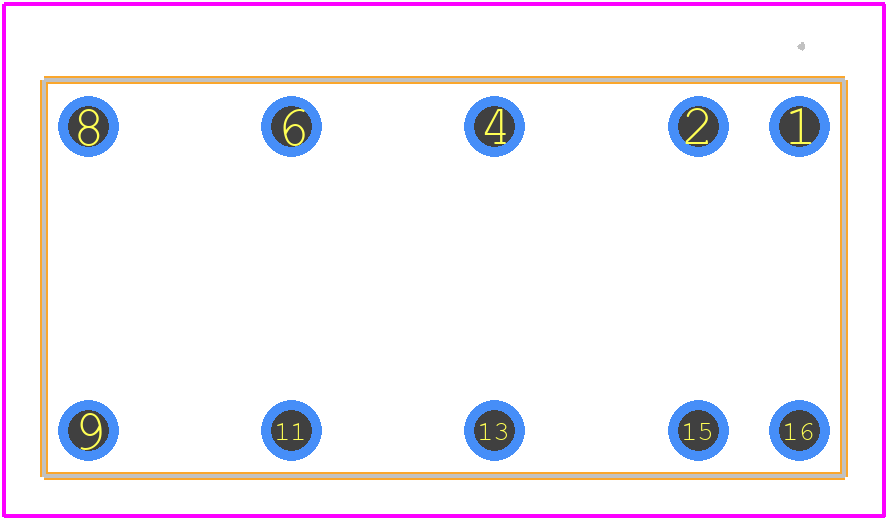

• Mounting Feature:

  THROUGH HOLE-STRAIGHT MOUNT

• Number of Terminals:

  10

• Operate Time:

  10 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  20mm x 9.9mm x 9.9mm

• Reference Standard:

  CSA; UL

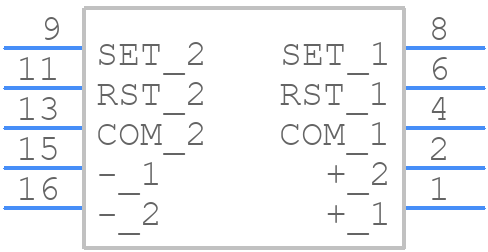

• Relay Action:

  LATCHED

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Sealing:

  EPOXY RESIN SEALED

• Surface Mount:

  NO

• Terminal Finish:

  Gold (Au)

• Terminal Length:

  0.0034010668021336042 inch

• Termination Type:

  SOLDER
