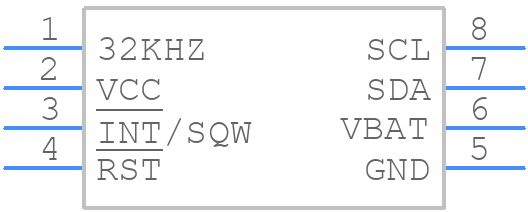

DS3231MZ/V+T - Analog Devices

DS3231MZ/V+T Details

• Manufacturer Part Number:

  DS3231MZ/V+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8-SOIC_N-150_MIL

• Package Description:

  ROHS COMPLIANT, SOIC-8

• Pin Count:

  8

• Manufacturer Package Code:

  8-SOIC_N-150_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2010-07-07

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Clock Frequency-Max:

  0.032 MHz

• Information Access Method:

  SERIAL(I2C)

• Interrupt Capability:

  Y

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -45 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time-Min:

  SECONDS

• Time@Peak Reflow Temperature-Max (s):

  30

• Volatile:

  NO

• Width:

  3.9 mm

• uPs/uCs/Peripheral ICs Type:

  TIMER, REAL TIME CLOCK
