DS32KHZS#T&R - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - DS32KHZS#T&R - TCXO, 32.768 kHz, 7.5 ppm, SOIC, Square Wave, 5 V, DS32kHz Series

Download DS32KHZS#T&R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

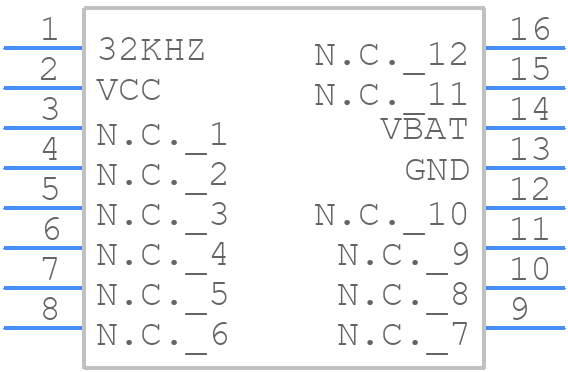

Symbol
DS32KHZS#T&R - Analog Devices - PCB symbol
click to zoom

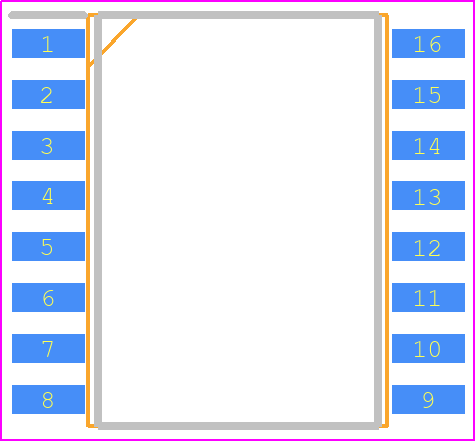

PCB Footprints
DS32KHZS#T&R - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16#H2_2020
click to zoom
3D Models
DS32KHZS#T&R - Analog Devices - 3D model - Small Outline Packages - W16#H2_2020
click to zoom

DS32KHZS#T&R Details

  • Manufacturer Part Number:

    DS32KHZS#T&R

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SOP,

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2003-02-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO REQUIRES 2.7V TO 5.5V BATTERY SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.285 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.67 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

DS32KHZS#T&R Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input signal. This ensures proper initialization and prevents any potential latch-up or damage to the device.
  • To ensure accurate frequency output, it's essential to use a high-quality crystal oscillator with a suitable load capacitance, and to follow the recommended PCB layout and grounding guidelines. Additionally, the device should be operated within its specified temperature range and power supply voltage.
  • Yes, the DS32KHZS has built-in noise immunity features, such as hysteresis and slew-rate limiting, to help reject noise and ensure reliable operation. However, it's still important to follow proper PCB design and layout practices to minimize noise coupling and ensure reliable operation.
  • The maximum allowable crystal frequency deviation for the DS32KHZS is ±100 ppm. Exceeding this limit may affect the device's accuracy and reliability.
  • Yes, the DS32KHZS is suitable for battery-powered devices due to its low power consumption (typically 1.5 μA) and low voltage operation (down to 1.8 V). However, it's essential to ensure that the power supply voltage remains within the specified range to maintain accurate frequency output.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS32KHZS#T&R Overview

Use the download button to access the DS32KHZS#T&R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS32K, or try a keyword search, such as Other Analog ICs
