DS3502U+T&R - Analog Devices

Description: High-Voltage NV I?C Potentiometer

Download DS3502U+T&R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

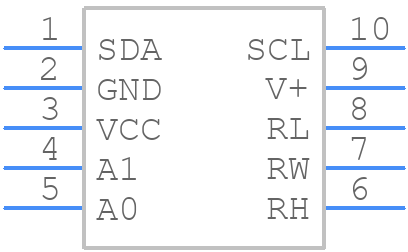

DS3502U+T&R - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS3502U+T&R - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µSOP
click to zoom
3D Models
DS3502U+T&R - Analog Devices - 3D model - Small Outline Packages - 10 µSOP
click to zoom

DS3502U+T&R Details

  • Manufacturer Part Number:

    DS3502U+T&R

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, MICRO, SOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-01-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    NONVOLATILE MEMORY

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    15.5 V

  • Resistor Terminal Voltage-Min:

    -0.3 V

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3 mm

DS3502U+T&R Frequently Asked Questions (FAQs)

  • The datasheet provides some general guidelines, but it's recommended to follow Analog Devices' application notes (such as AN-1349) for specific layout and PCB design considerations to ensure optimal performance and reduce EMI/EMC issues.
  • The POR circuitry can be implemented using external components, such as resistors and capacitors, or using an external reset IC. It's recommended to follow the example circuit provided in the datasheet or consult with Analog Devices' support team for specific guidance.
  • The DS3502U+T&R has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider heat sinks or thermal pads to keep the device within its operating temperature range.
  • Check the PCB layout, component selection, and soldering quality. Verify that the external components, such as resistors and capacitors, meet the recommended specifications. Consult the datasheet, application notes, and Analog Devices' support team for specific troubleshooting guidance.
  • Use high-speed oscilloscopes, signal generators, and vector network analyzers to characterize the device's performance. Ensure that the equipment is capable of measuring high-frequency signals and has the necessary bandwidth and dynamic range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS3502U+T&R Overview

Use the download button to access the DS3502U+T&R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS350, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
