For optimal performance, it's recommended to follow Panasonic's recommended PCB layout guidelines, which include keeping the relay module away from high-frequency components, using a solid ground plane, and ensuring good thermal conductivity. Additionally, ensure good airflow around the relay module to prevent overheating.
To ensure reliable switching and minimize contact bounce, use a debouncing circuit or a capacitor in parallel with the relay coil to reduce electromagnetic interference (EMI). Also, consider using a relay driver IC or a dedicated relay module with built-in debouncing.
The maximum switching frequency for the DS4E-SL2-DC24V relay module is typically around 1-2 Hz, and the recommended duty cycle is 20-80%. However, this may vary depending on the specific application and environmental conditions. Consult Panasonic's application notes or contact their support team for more information.
While the DS4E-SL2-DC24V relay module is designed to be robust, it's essential to consider the environmental conditions of your application. For high-vibration or high-shock environments, you may need to add additional mechanical support or consider a relay module specifically designed for such conditions.
To ensure EMC and reduce EMI, follow proper PCB layout guidelines, use shielding, and consider adding EMI filters or common-mode chokes. Additionally, ensure that your design meets relevant regulatory standards, such as CE, UL, or FCC.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS4E-SL2-DC24V Overview

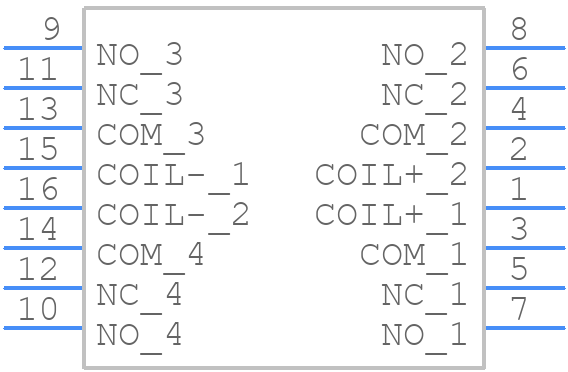

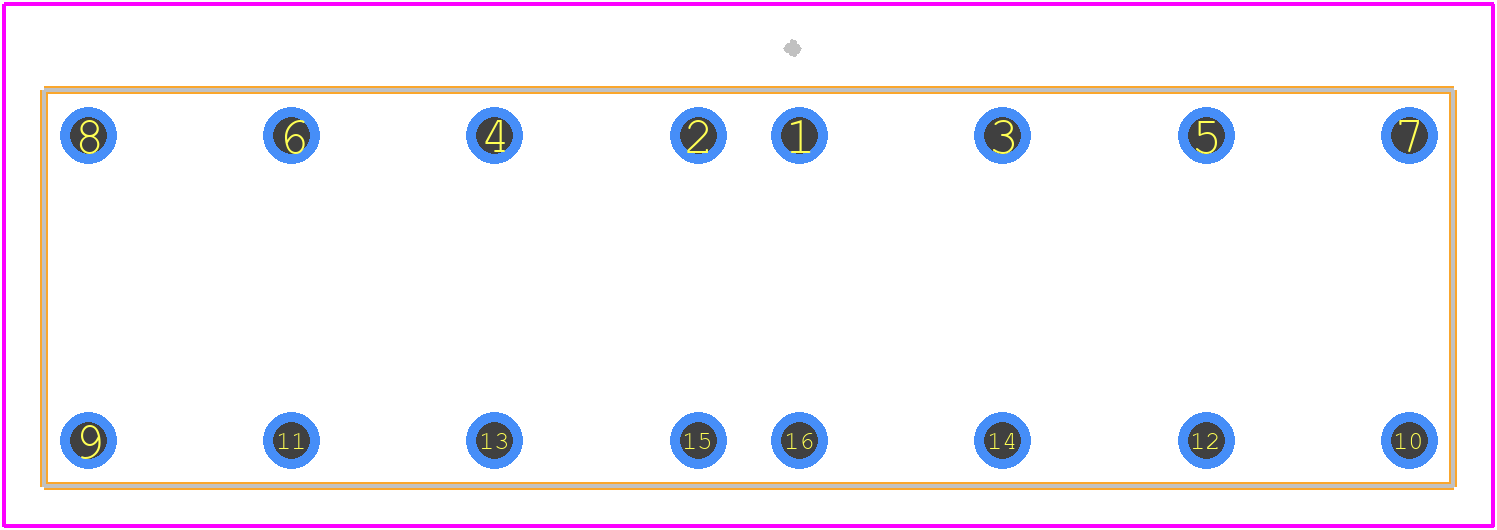

Use the download button to access the DS4E-SL2-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS4E-,
or try a keyword search, such as Power/Signal Relays
