DS5002FPM-16+ - Analog Devices

DS5002FPM-16+ Details

• Manufacturer Part Number:

  DS5002FPM-16+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

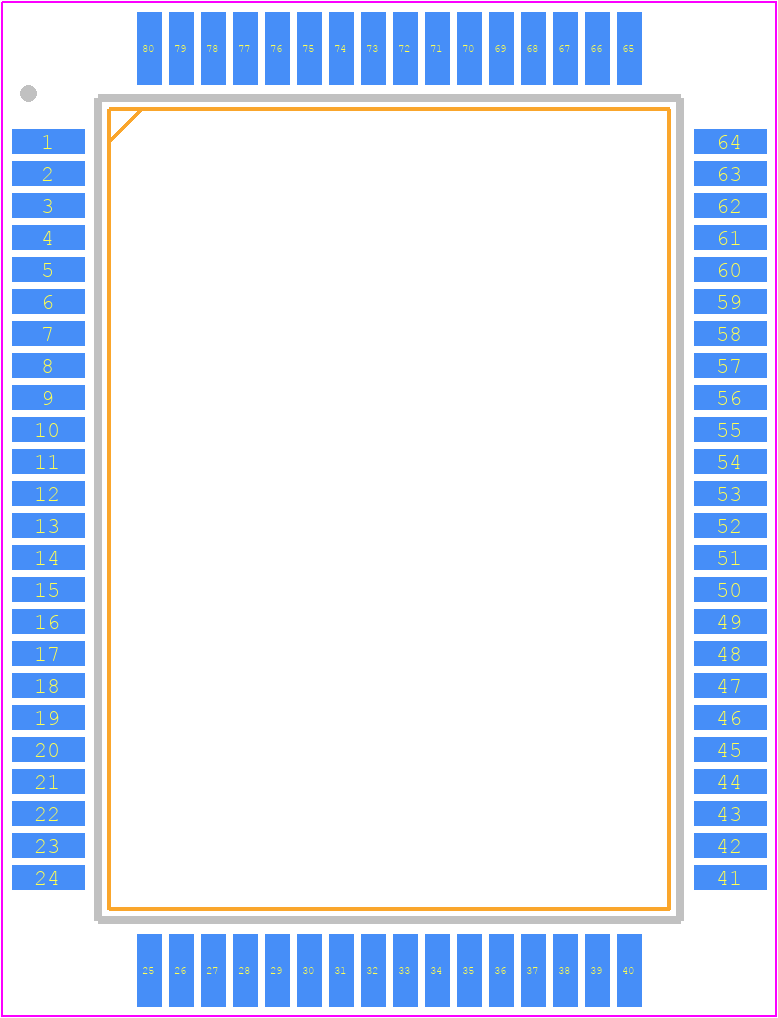

• Part Package Code:

  80-MQFP-14X14X2.0(+3.2)

• Package Description:

  ROHS COMPLIANT, QFP-80

• Pin Count:

  80

• Manufacturer Package Code:

  80-MQFP-14X14X2.0(+3.2)

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.31.00.15

• Date Of Intro:

  2003-03-06

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Has ADC:

  NO

• Additional Feature:

  16/8 BIT MULTIPLEXED EXPANDED ADDRESS/DATA BUS; 10 YEAR DATA RETENTION

• Address Bus Width:

  16

• Bit Size:

  8

• CPU Family:

  8051

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PQFP-G80

• JESD-609 Code:

  e3

• Length:

  20 mm

• Moisture Sensitivity Level:

  4

• Number of I/O Lines:

  32

• Number of Terminals:

  80

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.7X.9,32

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• RAM (bytes):

  131072

• Seated Height-Max:

  3.4 mm

• Speed:

  16 MHz

• Supply Current-Max:

  36 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
