DS5022P-223 footprint, schematic symbol and 3D model by COILCRAFT

Symbol

click to zoom

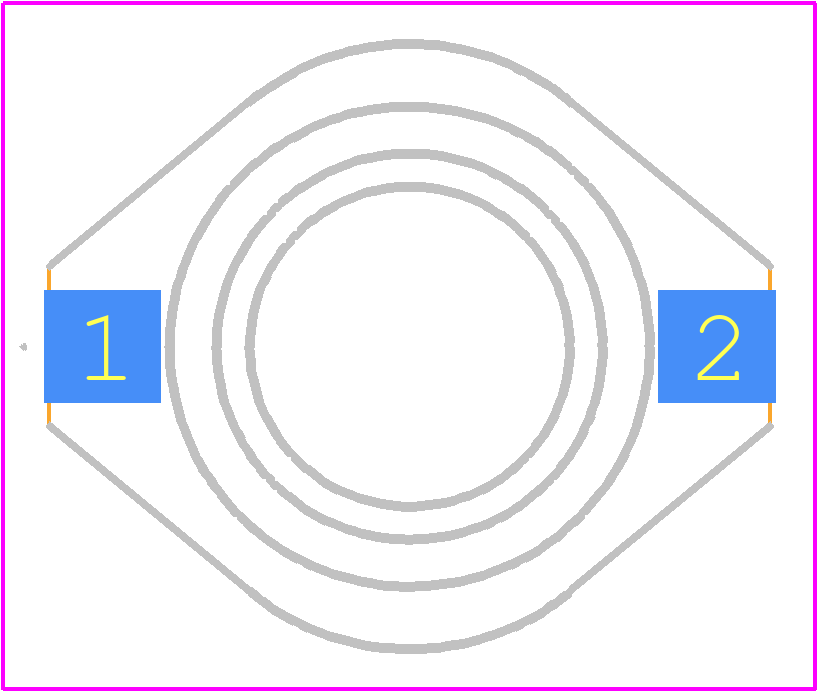

PCB Footprints

DS5022P-223 - COILCRAFT PCB footprint - Other - Other - DS5022P-223-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DS5022P-223
Part Number DS5022P-223
Manufacturer COILCRAFT
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - DS5022P-223-3
Released Date Aug 6, 2024
Last Modified Date Aug 6, 2024 12:24 PM UTC
Pinout / Pin List Click Here (Member Only)

DS5022P-223 Details

Manufacturer Part Number:
DS5022P-223
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Manufacturer:
Coilcraft Inc
YTEOL:
0
Case/Size Code:
7360
Construction:
Rectangular
Core Material:
FERRITE
DC Resistance:
0.059 Ω
Inductance-Nom (L):
22 µH
Inductor Application:
POWER INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e4
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Height:
7.62 mm
Package Length:
18.54 mm
Package Style:
SMT
Package Width:
15.24 mm
Packing Method:
TR, 13 Inch
Rated Current-Max:
3.1 A
Self Resonance Frequency:
18 MHz
Shape/Size Description:
RECTANGULAR PACKAGE
Shielded:
YES
Surface Mount:
YES
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
Terminal Placement:
DUAL ENDED
Terminal Shape:
WRAPAROUND
Test Frequency:
0.1 MHz
Tolerance:
20%

DS5022P-223 Frequently Asked Questions (FAQs)

Coilcraft provides a recommended land pattern for the DS5022P-223 in their documentation, which includes a suggested pad layout and dimensions to ensure proper soldering and thermal performance.
While the datasheet specifies an operating temperature range of -40°C to +125°C, Coilcraft recommends derating the inductor's current rating at high temperatures to ensure reliable operation. Consult Coilcraft's application notes for more information.
The DS5022P-223 is designed to meet the vibration requirements of various industry standards, including IEC 60068-2-6. However, it's essential to evaluate the inductor's performance in your specific application and consider additional mechanical support or potting if necessary.
To minimize electromagnetic interference (EMI) and ensure proper operation, keep the DS5022P-223 at least 5 mm away from other components and consider using shielding or a magnetic shield can if necessary. Consult Coilcraft's application notes for more guidance.
The SRF of the DS5022P-223 is not explicitly stated in the datasheet, but it can be estimated using Coilcraft's online tools or by contacting their technical support. The SRF is typically above 100 MHz for this inductor.

Trust Checks

Community Provided

System Verified

Community Approved

DS5022P-223 Overview

Use the download button to access the DS5022P-223 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DS502, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
