DS80C320-QCG+ - Analog Devices

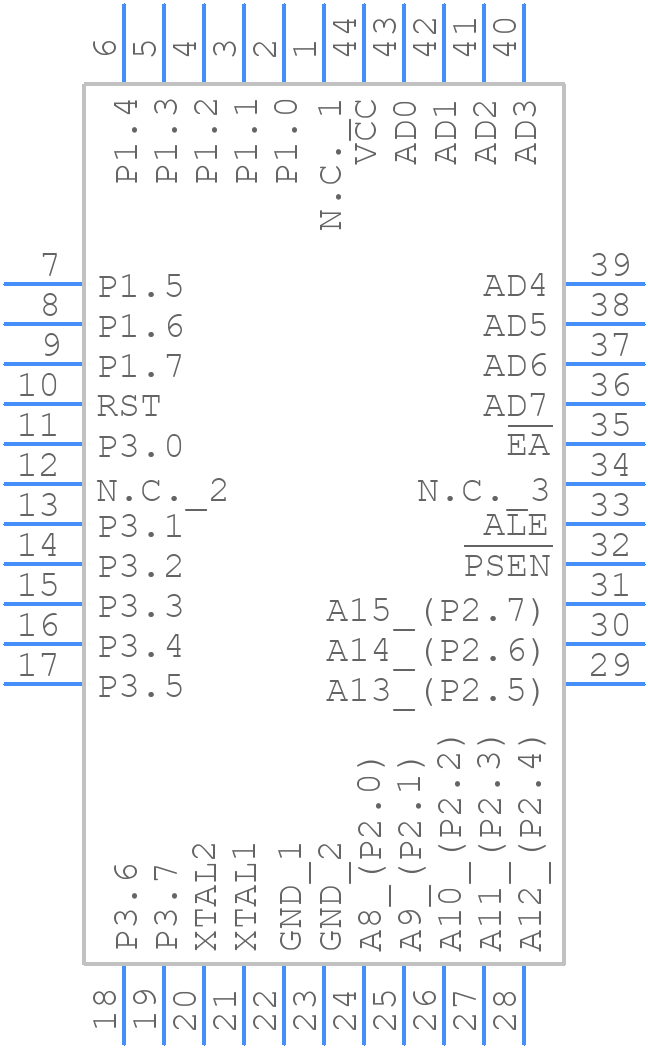

DS80C320-QCG+ Details

• Manufacturer Part Number:

  DS80C320-QCG+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  44-PLCC-N/A

• Package Description:

  QCCJ, LDCC44,.7SQ

• Pin Count:

  44

• Manufacturer Package Code:

  44-PLCC-N/A

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.31.00.15

• Date Of Intro:

  1999-11-22

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Has ADC:

  NO

• Address Bus Width:

  16

• Bit Size:

  8

• CPU Family:

  8051

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e3

• Length:

  16.585 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  32

• Number of Terminals:

  44

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• RAM (bytes):

  256

• ROM Programmability:

  MROM

• Seated Height-Max:

  4.57 mm

• Speed:

  25 MHz

• Supply Current-Max:

  45 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16.585 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
