DS87C520-ENL+ - Analog Devices

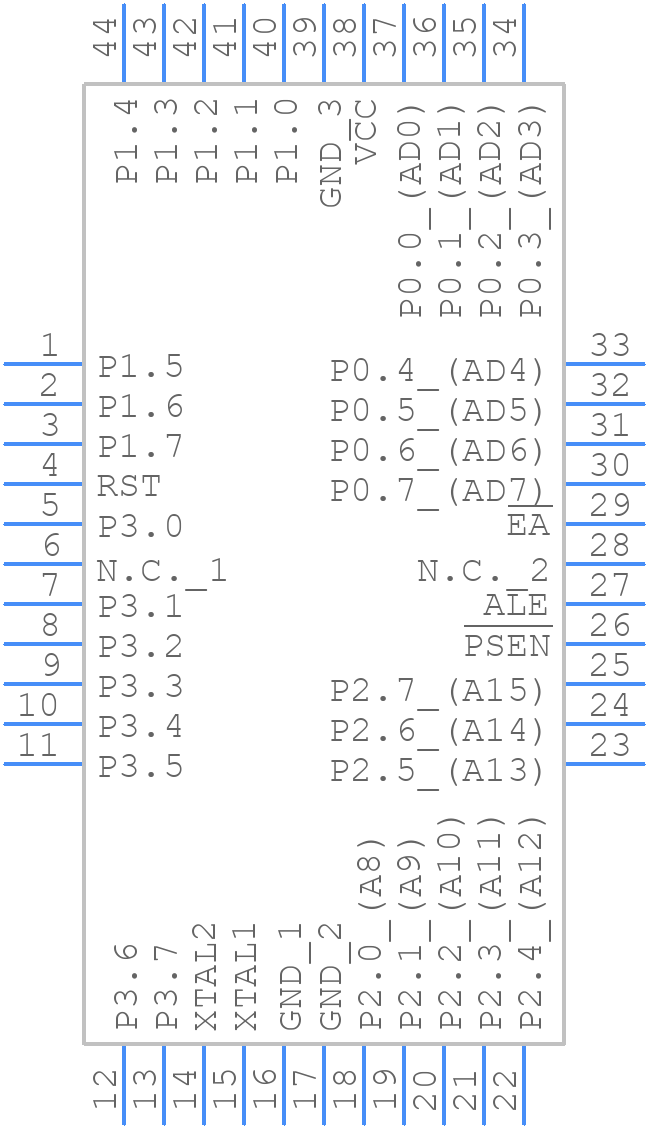

DS87C520-ENL+ Details

• Manufacturer Part Number:

  DS87C520-ENL+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  44-TQFP-10X10X1.0

• Package Description:

  10 X 10 MM, 1 MM HEIGHT, ROHS COMPLIANT, TQFP-44

• Pin Count:

  44

• Manufacturer Package Code:

  44-TQFP-10X10X1.0

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.15

• Date Of Intro:

  2000-07-03

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Has ADC:

  NO

• Address Bus Width:

  16

• Bit Size:

  8

• Boundary Scan:

  YES

• CPU Family:

  8051

• Clock Frequency-Max:

  33 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQFP-G44

• JESD-609 Code:

  e3

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  32

• Number of Terminals:

  44

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TQFP

• Package Equivalence Code:

  TQFP44,.47SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  1280

• ROM (words):

  16384

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  1.2 mm

• Speed:

  33 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
