- Part Number DSBT2-S-DC24V
- Manufacturer Panasonic
- Pin Count 8
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - DSBT2-S-DC24V-3
- Released Date Jan 24, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DSBT2-S-DC24V Details
-
Manufacturer Part Number:
DSBT2-S-DC24V
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
0
-
Body Breadth:
10.65 mm
-
Body Height:
10.5 mm
-
Body Length or Diameter:
20.65 mm
-
Coil Current(DC)-Max:
0.015 A
-
Coil Operate Voltage(DC):
18 V
DSBT2-S-DC24V Frequently Asked Questions (FAQs)
-
Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, reduce electromagnetic interference, and prevent soldering issues.
-
To ensure reliability, it's crucial to follow Panasonic's recommended operating temperature range and derating guidelines. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management to keep the device within its specified temperature range.
-
While the datasheet provides information on the device's continuous current rating, it may not explicitly state the maximum surge current. Panasonic's application engineers or technical support can provide guidance on the device's surge current capabilities and recommend design considerations to mitigate surge current effects.
-
Yes, but it's essential to ensure that the device is properly mounted and secured to the PCB using Panasonic's recommended mounting methods and materials. Additionally, consider using vibration-resistant components and design techniques to minimize the impact of vibrations on the device's performance and reliability.
-
Panasonic provides troubleshooting guides and application notes that can help identify and resolve common issues. It's also recommended to consult with Panasonic's technical support or a qualified engineer with experience in similar applications.
Trust Checks
Community Provided
System Verified
Community Approved
DSBT2-S-DC24V Overview

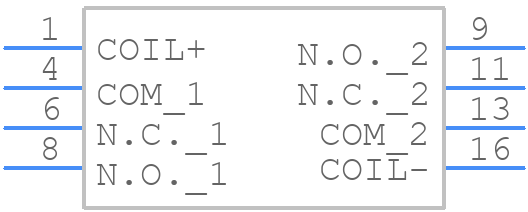

Use the download button to access the DSBT2-S-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSBT2,
or try a keyword search, such as Power/Signal Relays
