DSC400-1111Q0034KI1 - Microchip

Description: Specialty Oscillators MEMS Clock Generator, 4 Output

Download DSC400-1111Q0034KI1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

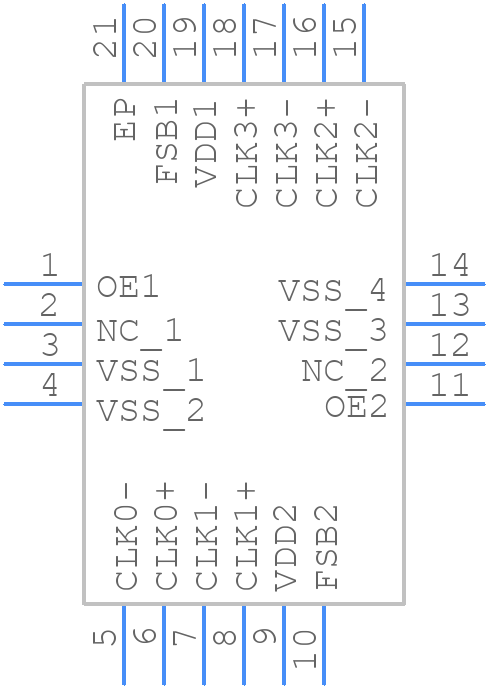

DSC400-1111Q0034KI1 - Microchip - PCB symbol
click to zoom
PCB Footprints
DSC400-1111Q0034KI1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - .20-Lead QFN 5.0 mm x 3.2 mm
click to zoom
3D Models
DSC400-1111Q0034KI1 - Microchip - 3D model - Quad Flat No-Lead - .20-Lead QFN 5.0 mm x 3.2 mm
click to zoom

DSC400-1111Q0034KI1 Details

  • Manufacturer Part Number:

    DSC400-1111Q0034KI1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    VQFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Additional Feature:

    MEMS CLOCK GENERATORS AS EXT CLOCK

  • JESD-30 Code:

    R-XQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    170 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    44 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.2 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, MEMS

DSC400-1111Q0034KI1 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity.
  • To optimize the DSC400-1111Q0034KI1 for low power consumption, use the device's power-saving modes, such as the Sleep mode, and optimize the clock frequency and voltage supply. Additionally, use a low-power oscillator and minimize the number of active circuits.
  • The maximum operating temperature range for the DSC400-1111Q0034KI1 is -40°C to +125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's essential to ensure proper thermal management and cooling mechanisms are in place.
  • To troubleshoot issues with the DSC400-1111Q0034KI1, use a logic analyzer or oscilloscope to monitor the device's signals and clock frequencies. Check the device's configuration and programming, and ensure that the power supply and voltage regulators are functioning correctly.
  • Yes, the DSC400-1111Q0034KI1 is compatible with other Microchip devices, such as microcontrollers and analog-to-digital converters. However, it's essential to ensure that the devices are compatible in terms of voltage supply, clock frequency, and communication protocols.
