- Part Number DSF226
- Manufacturer XP POWER
- Pin Count 11
- Part Category Power Supply
- Package Category Other

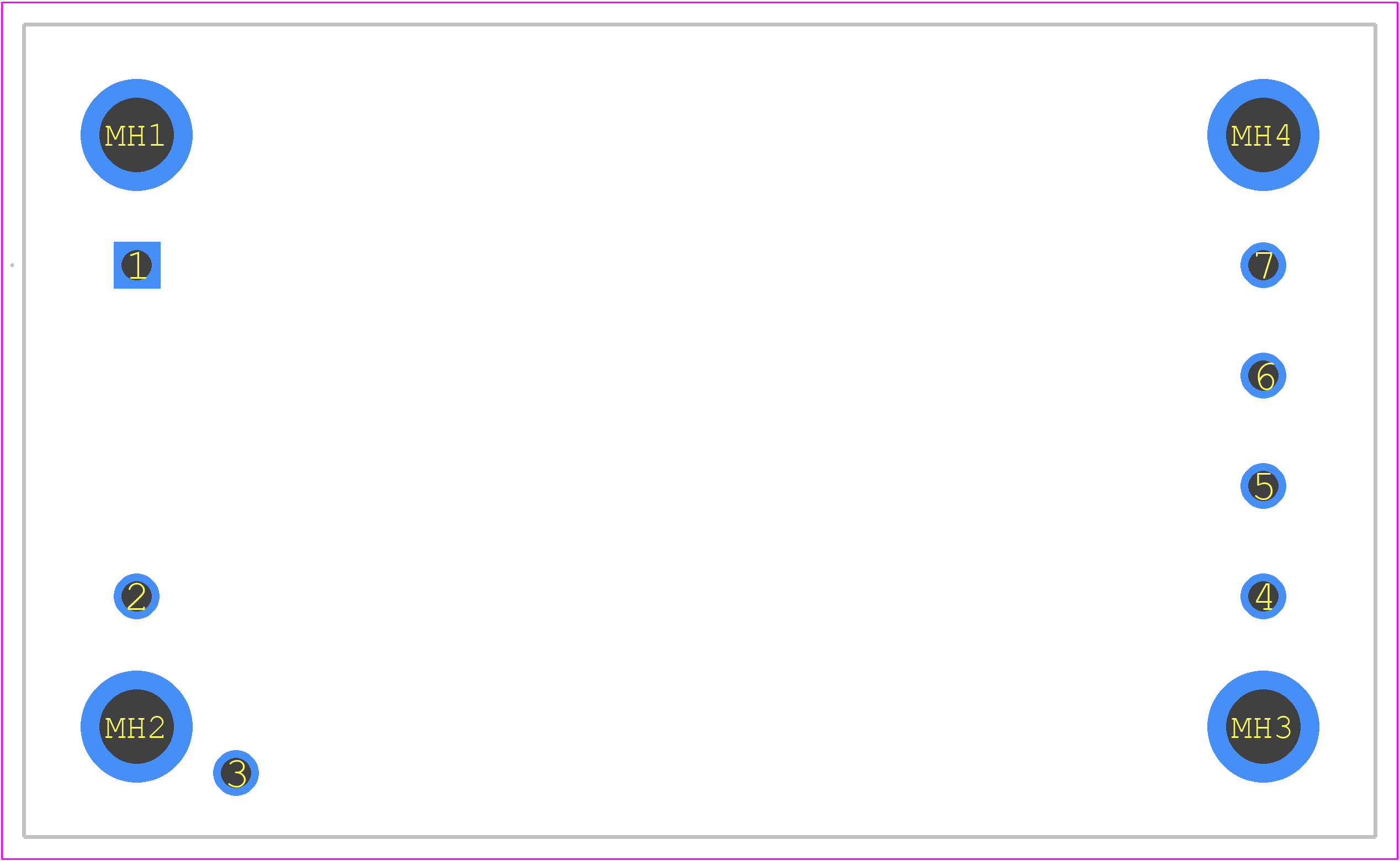

- Footprint Name Other - DSF226-3
- Released Date Jan 4, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DSF226 Details
-
Manufacturer Part Number:
DSF226
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
XP Power
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
-
Input Voltage-Max:
33 V
-
Input Voltage-Min:
15 V
-
JESD-609 Code:
e2
-
Number of Functions:
1
-
Number of Outputs:
1
DSF226 Frequently Asked Questions (FAQs)
-
The maximum capacitive load for the DSF226 is not explicitly stated in the datasheet, but XP Power recommends limiting the output capacitance to 10uF to 22uF to ensure stability.
-
While the DSF226 has a rated operating temperature range of -40°C to +85°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
-
The DSF226 meets various safety and regulatory standards, including UL60950-1, EN60950-1, and IEC60950-1. However, it's crucial to review the specific requirements for your application and ensure the DSF226 meets those needs.
-
XP Power provides a recommended layout and PCB design guide in the datasheet, which includes guidelines for component placement, thermal vias, and copper pours to ensure optimal performance and thermal management.
-
Yes, the DSF226 can be used in redundant or parallel configurations, but it's essential to follow XP Power's guidelines and recommendations for synchronization, current sharing, and fault tolerance to ensure reliable operation.
Trust Checks
Community Provided
System Verified
Community Approved
DSF226 Overview

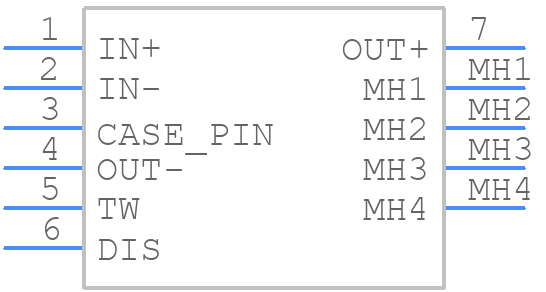

Use the download button to access the DSF226 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSF22,
