DSF500 - XP POWER

Description: Isolated Module DC DC Converter 1 Output 36V 28A 10V - 33V Input

Download DSF500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

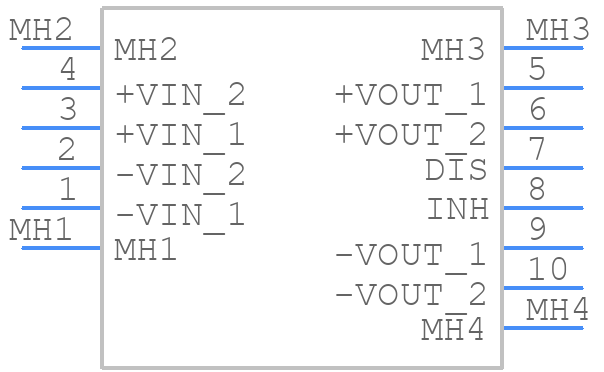

Symbol
DSF500 - XP POWER - PCB symbol
click to zoom

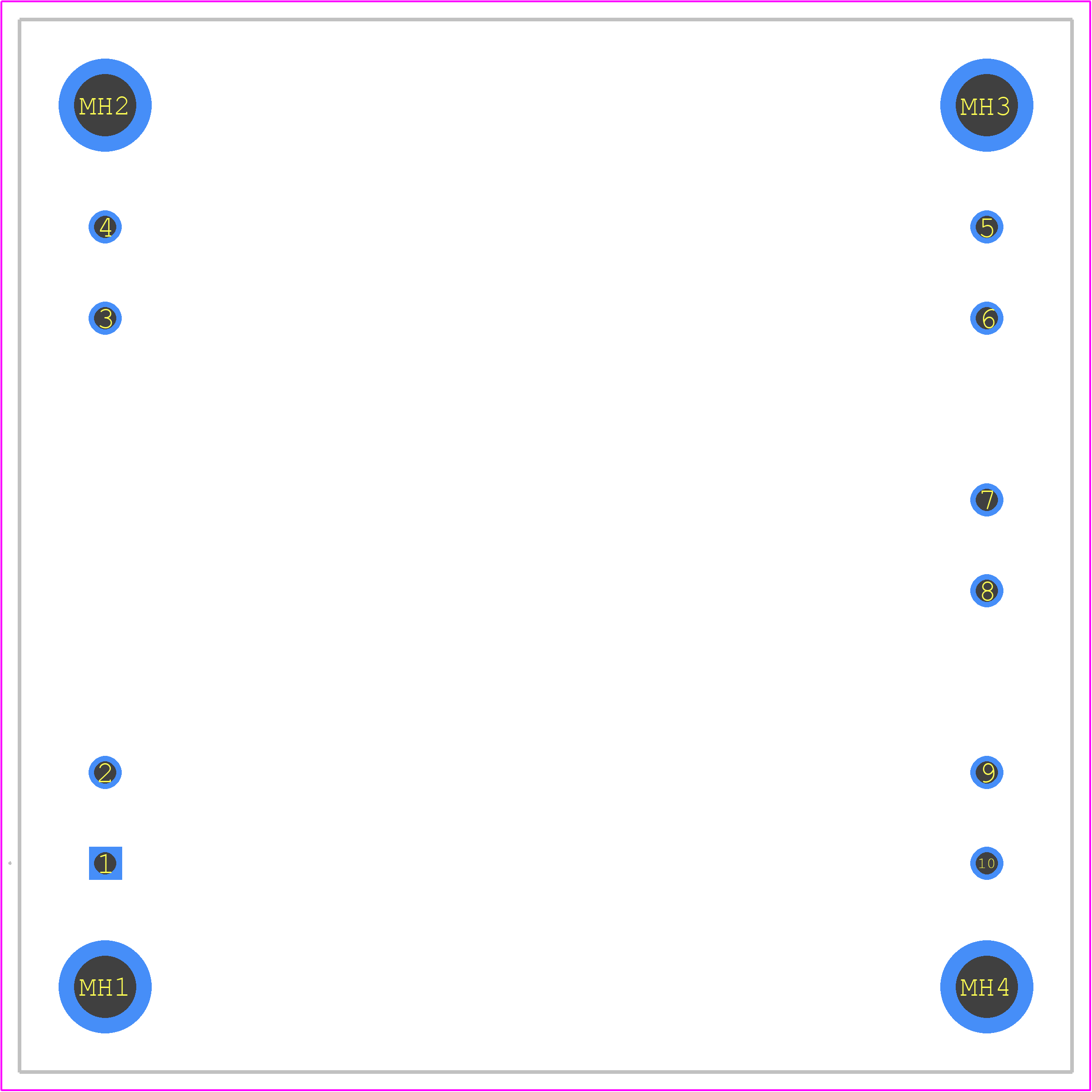

PCB Footprints
DSF500 - XP POWER PCB footprint - Other - Other - DSF500-3
click to zoom
3D Models
DSF500 - XP POWER - 3D model - Other - DSF500-3
click to zoom

DSF500 Details

  • Manufacturer Part Number:

    DSF500

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Filter & Surge Protection

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    8

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e2

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN COPPER

DSF500 Frequently Asked Questions (FAQs)

  • The DSF500 series can operate from -20°C to +70°C, with derating above 50°C.
  • Yes, the DSF500 is designed to operate up to 5,000 meters (16,400 ft) above sea level.
  • The hold-up time for the DSF500 is typically 10-20 ms, depending on the specific model and input voltage.
  • Yes, the DSF500 series supports parallel operation for increased power, but it's essential to follow XP Power's guidelines for proper configuration and wiring.
  • The MTBF for the DSF500 series is typically >500,000 hours, depending on the specific model and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DSF500 Overview

Use the download button to access the DSF500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSF50, or try a keyword search, such as Power Supply Modules
