Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and minimize thermal and electrical stress.
Proper heat dissipation and thermal management are crucial. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the relay. Also, consider the ambient temperature and heat generated by surrounding components.
A suitable drive circuit should be designed to provide a clean, high-current pulse to the relay coil. A recommended circuit includes a transistor or FET switch, a current-limiting resistor, and a diode for back-EMF protection.
Inrush current can be managed by using a soft-start circuit, adding a current-limiting resistor, or using a relay with a built-in inrush current limiter. Additionally, consider using a relay with a lower inrush current specification.
In high-vibration or high-shock environments, ensure the relay is securely mounted and consider using a relay with a higher vibration and shock rating. Also, use a relay with a secure, soldered connection to the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DSP1-L2-DC12V-F Overview

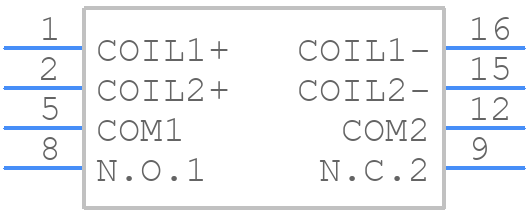

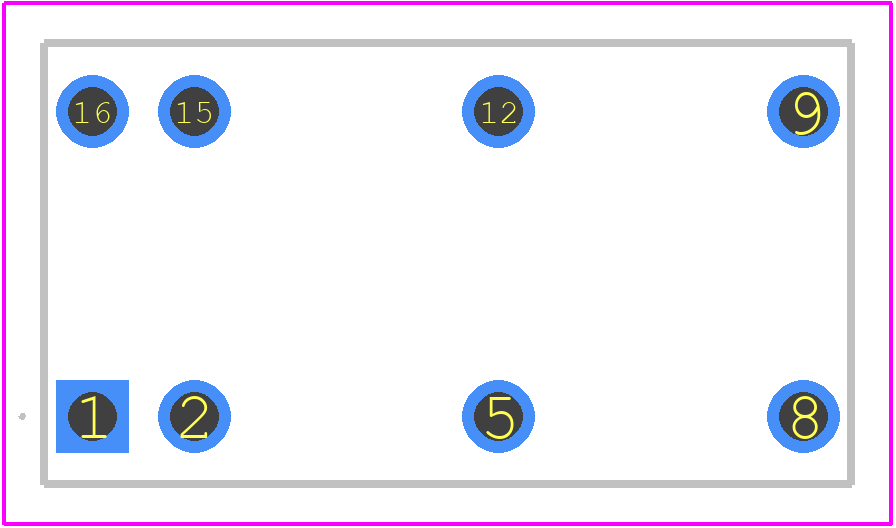

Use the download button to access the DSP1-L2-DC12V-F schematic symbol, PCB footprint, and 3D model.
