Panasonic recommends a PCB layout with a minimum of 1.5 mm clearance around the relay module to ensure proper heat dissipation. A thermal pad or heat sink can be added to the PCB to further improve thermal management.
To ensure reliable switching and minimize contact wear, Panasonic recommends using a switching frequency of 1 Hz or less, and applying a minimum of 10 ms of switching time. Additionally, using a snubber circuit or RC filter can help reduce contact wear.
The recommended operating temperature range for the DSP1-L2-DC24V-F relay module is -40°C to 85°C. However, it's essential to note that the relay's performance and lifespan may be affected by extreme temperatures.
While the DSP1-L2-DC24V-F relay module is designed to be robust, it's essential to ensure proper mounting and securing of the module to the PCB to prevent damage from vibration or shock. Panasonic recommends following the recommended mounting guidelines and considering additional mechanical reinforcement if necessary.
To troubleshoot issues with the relay module, Panasonic recommends checking the input voltage, coil resistance, and contact resistance. Additionally, using a relay driver IC or a dedicated relay test circuit can help identify faults. In some cases, it may be necessary to replace the relay module.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DSP1-L2-DC24V-F Overview

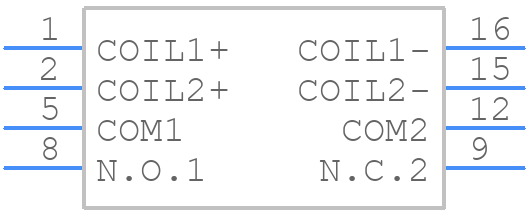

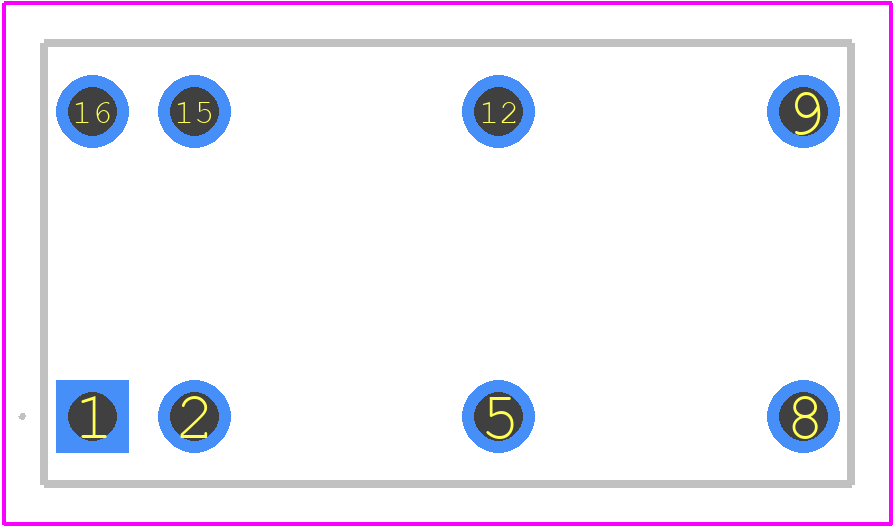

Use the download button to access the DSP1-L2-DC24V-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSP1-,
or try a keyword search, such as Power/Signal Relays
